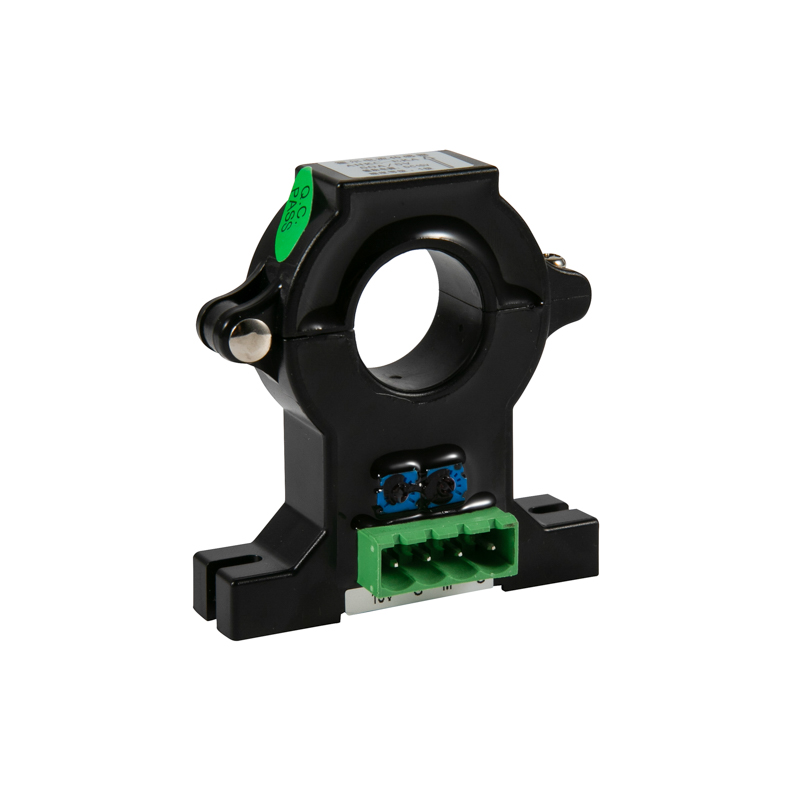

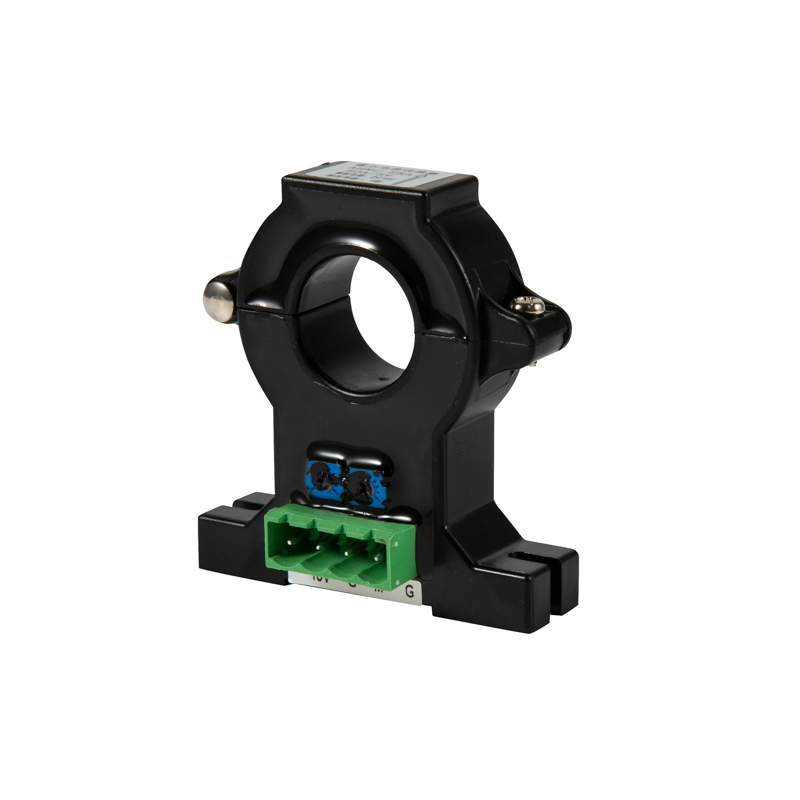

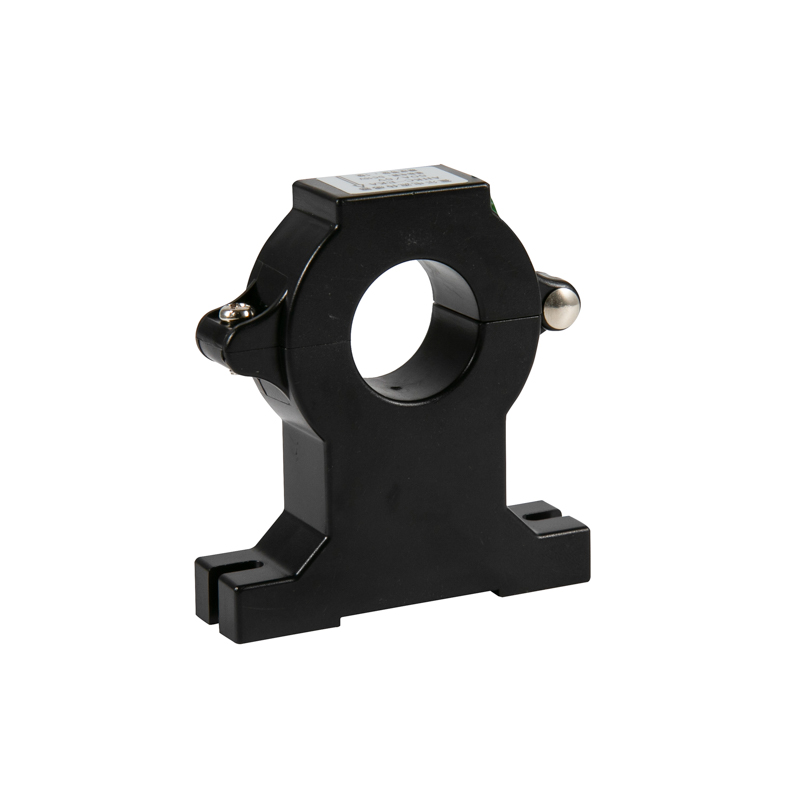

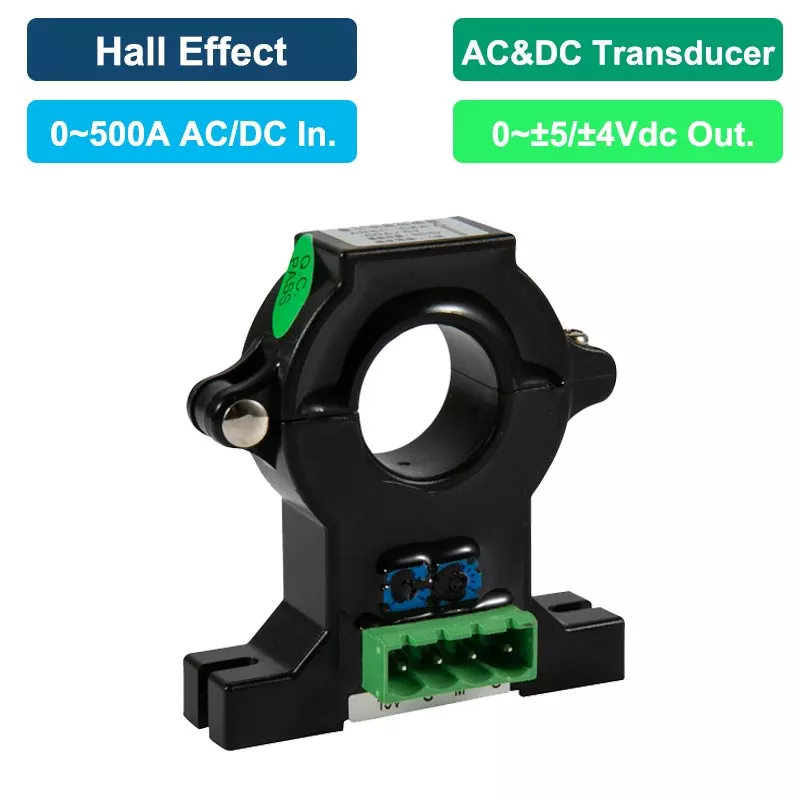

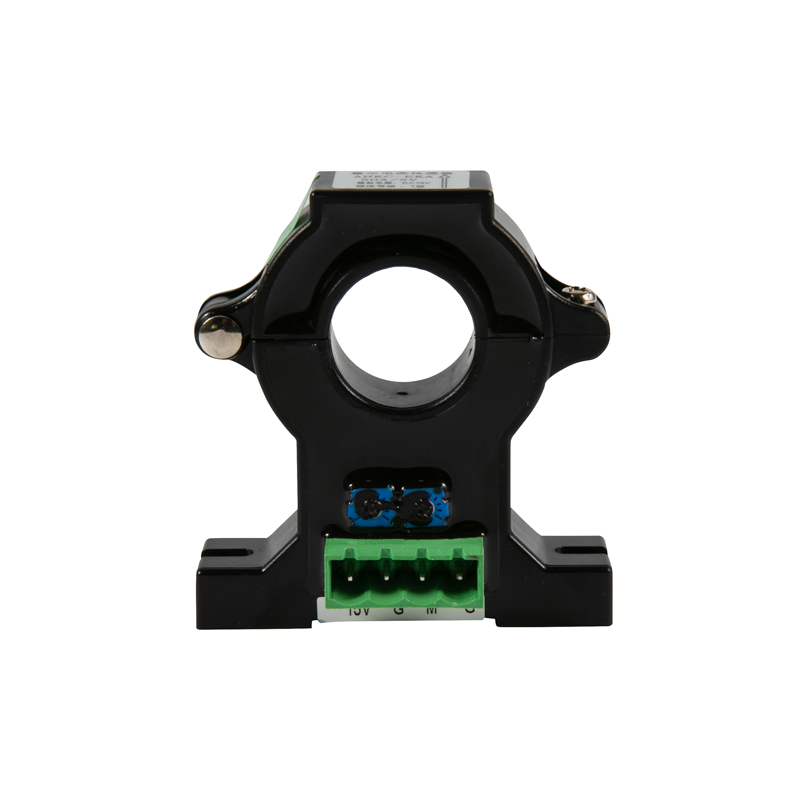

AHKC-EKA Split Core Hall Effect Current Sensor
General
The Hall current sensor is mainly suitable for the isolation and conversion of complex signals such as AC, DC, and pulse. It is suitable for current signal acquisition and feedback control of current monitoring and battery applications, inverter power supply and solar power management systems, DC panels and DC motor drives, electroplating, welding applications, inverters, UPS servo control and other systems.
Products Overview
Dimension
Installation Instruction

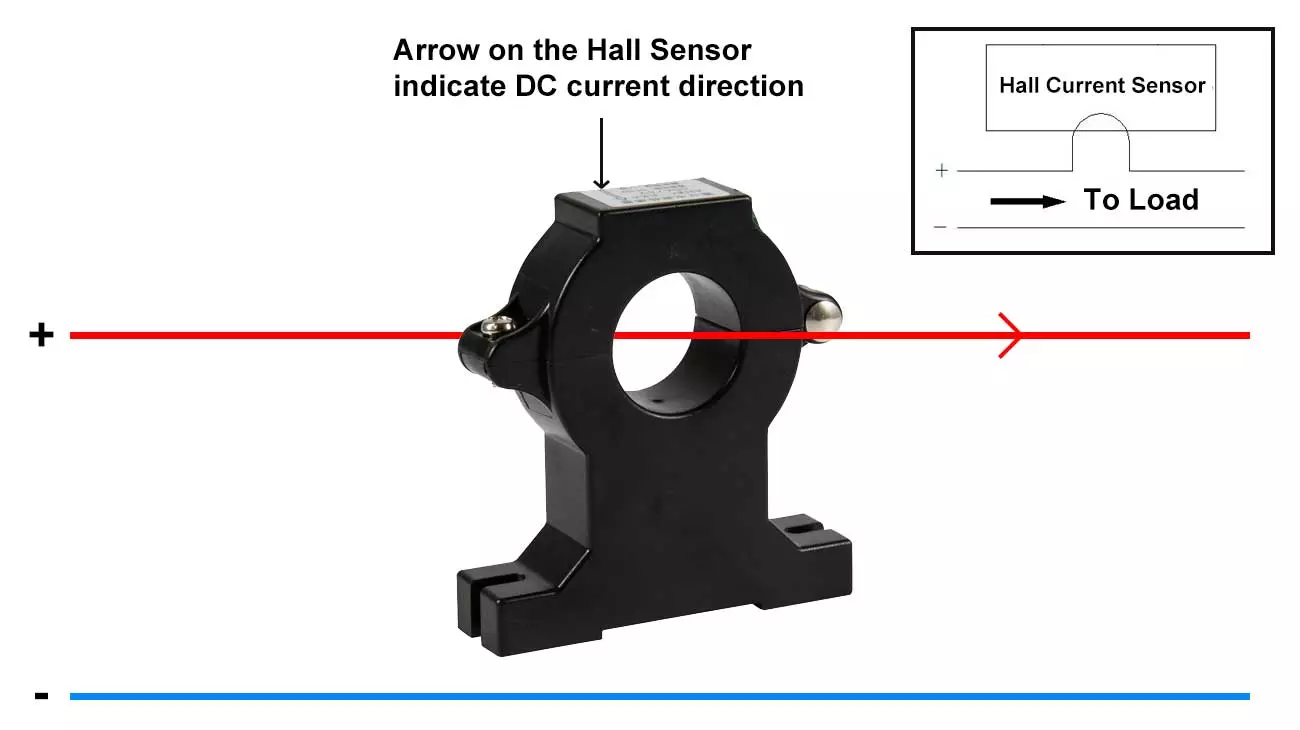

Clamp-on (Split-core) Installation on Measuring DC Cable

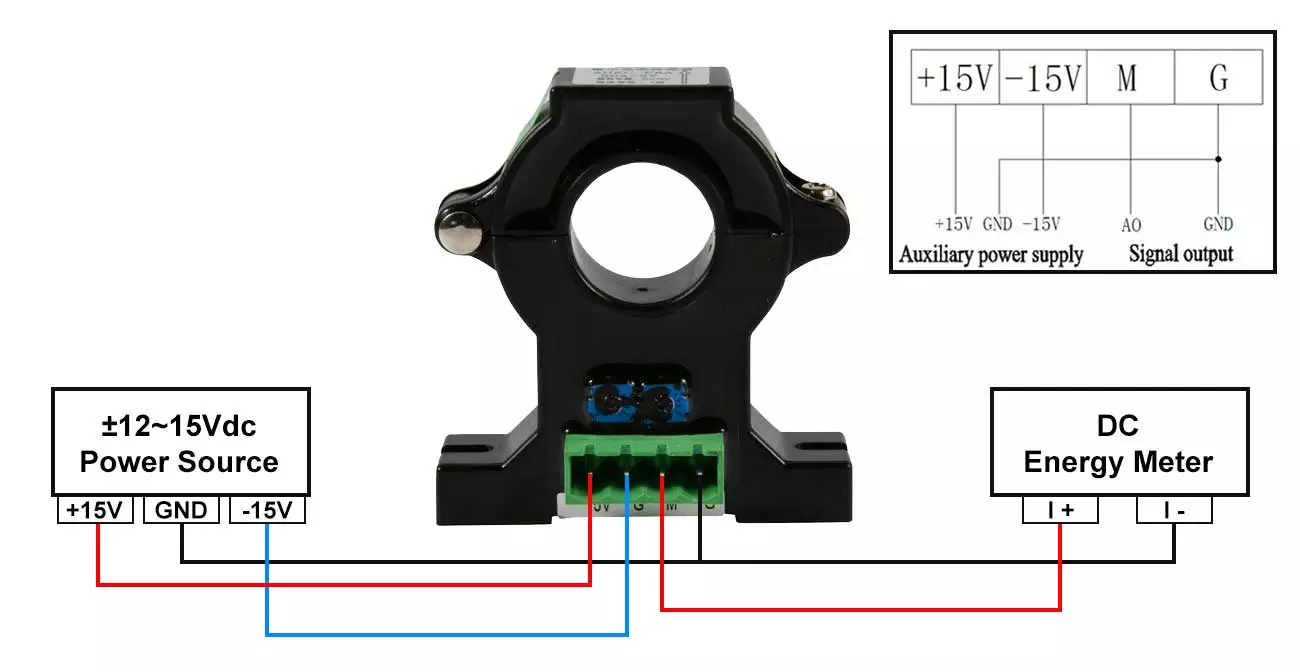

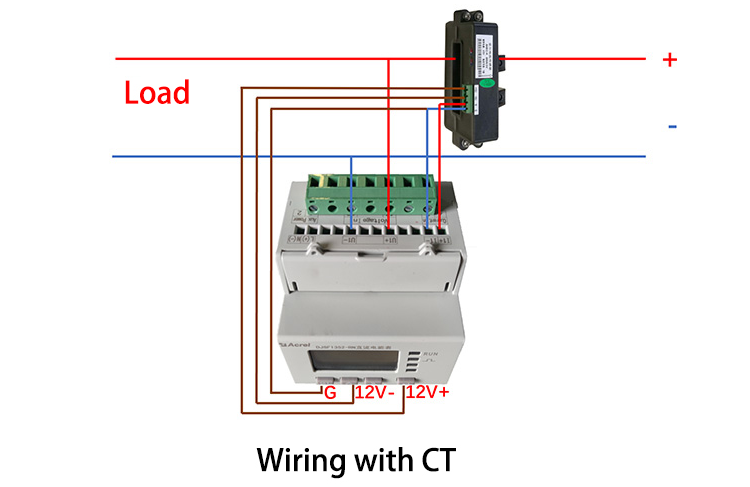

Wiring of Auxiliary Power Supply Input&Transduced Signal Output
Technical Datasheet
|
Parameters |
Index |
|
Rated Input Current |
0~(50-500)A |
|
Rated Output Voltage |
±5V/±4V |
|
Accuracy Class |
1.0 |
|
Power Voltage |
DC±15V(allowable fluctuation±20%) |
|
Zero Offset Voltage |
±20mV |
|
Offset Voltage Drift |
≤±1.0mV/℃ |
|
Linearity |
≤0.2%FS |
|
Response Time |
≤5us |
|
Bandwidth |
0~20kHz |
|
Isolation Voltage |
3.5kV/50Hz/1min |
|
Operating Temperature |
-40℃~85℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Consumption |
≤0.5W |
