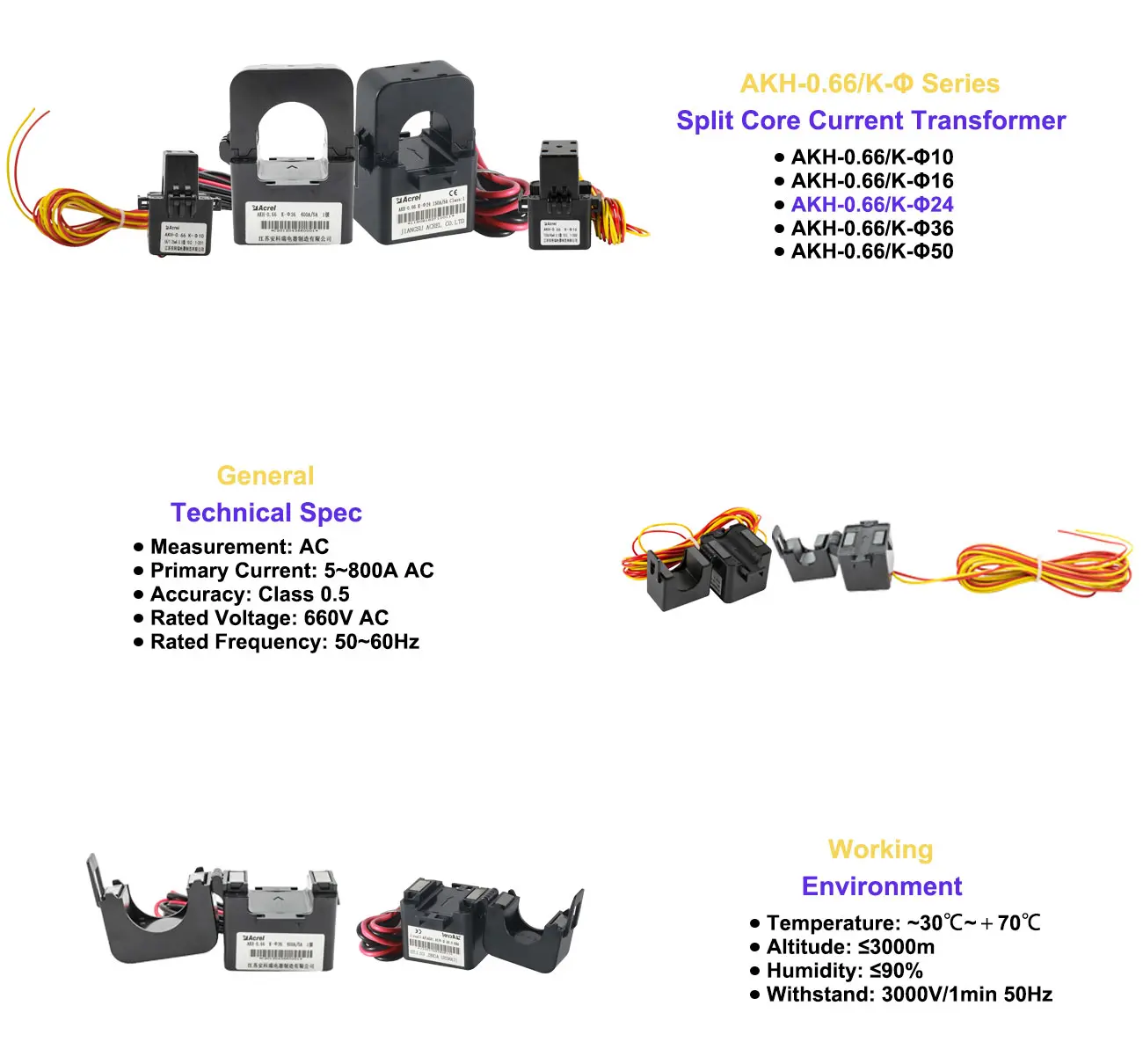

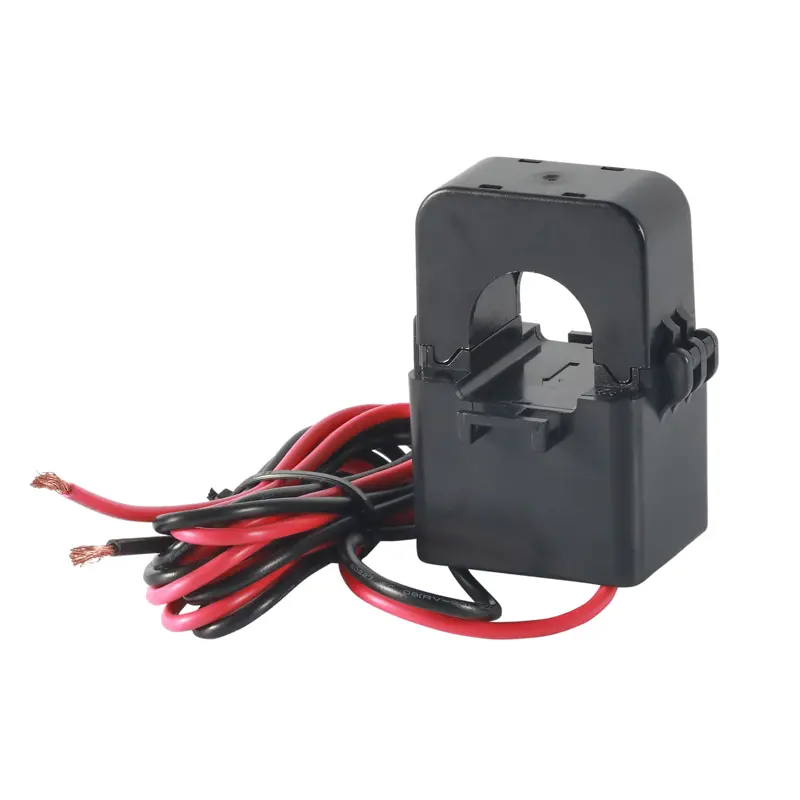

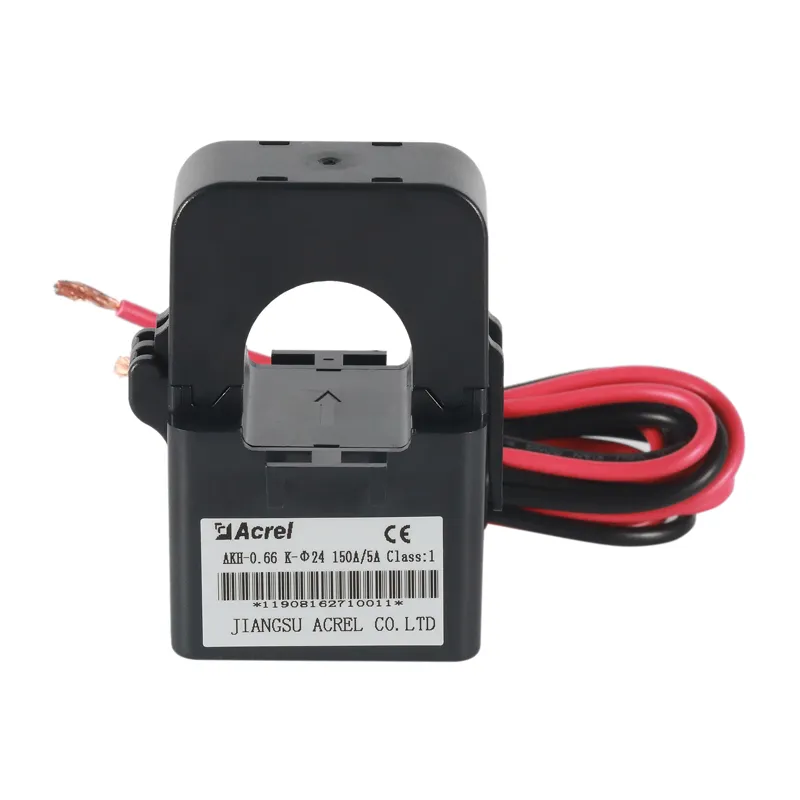

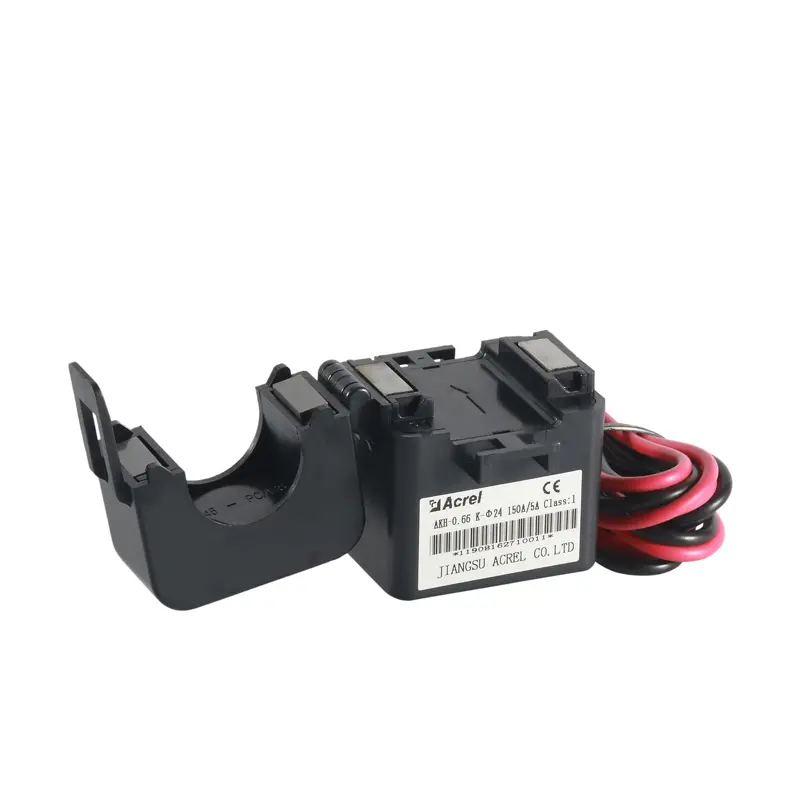

AKH-0.66/K-φ24 Split Core Current Transformer
General
Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment. The appearance is nice and the installation and wiring are convenient. AKH-0.66/K-Φ series split core CTs open type current transformers are mainly used in reconstructing projects of urban and rural power grids. Product has the advantages of small size, high accuracy, strong load capacity, easy installation, etc. They save the manpower, material resources and financial resources and improve the efficiency of users. Split core type current transformers can be easily installed onto an existing power system without disconnecting the measured primary conductor. Customers will benefit from reduced labour intensity, lowered operating costs and improved work efficiency by using high mobility or space-constrained or uninterrupted power systems.
Series Overview
| Model Name | Current Ratio (Primary/Secondary) | Accuracy Class | Rated Load (VA) | Perforation Hole Size (mm) |
|
AKH-0.66/K-φ10 |
5A/1.25mA | 0.5 | 10 | φ10 |
| (10~20)A/5mA | ||||
| (40~60)A/20mA | ||||
| AKH-0.66/K-φ16 | (20~50)A/10mA | φ16 | ||
| (40~100)A/20mA | ||||
| 100A/40mA | ||||
| AKH-0.66/K-φ24 | (60~200)A/20mA | φ24 | ||
| (100~250)A/40mA | ||||
| 400A/100mA | ||||
| AKH-0.66/K-φ36 | (100~200)A/10mA | φ36 | ||
| (200~400)A/20mA | ||||
| (300~600)A/100mA | ||||
| 400A/40mA | ||||
| 600A/75mA | ||||
| AKH-0.66/K-φ50 | (600~800)A/100mA | φ50 |

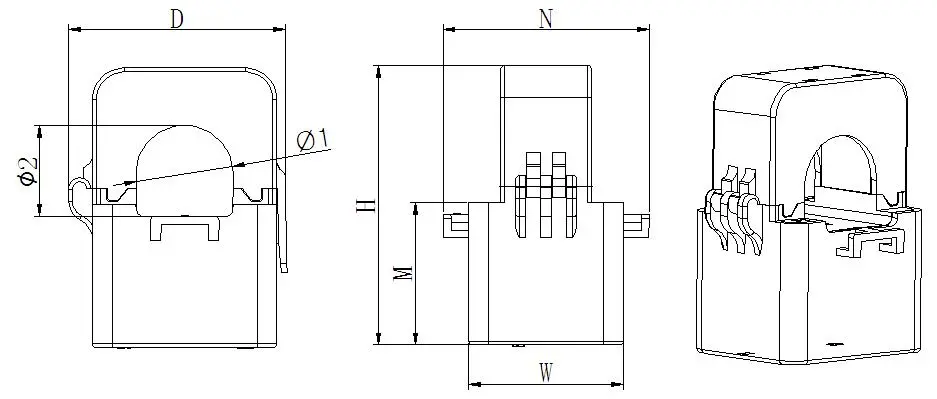

Dimension
| Model Name | Outline Size (mm) | Perforation Size (mm) | Tolerance (mm) | |||||
| W | H | D | M | N | φ1 | φ2 | ||
| AKH-0.66/K-φ10 | 27 | 40 | 26 | 24 | 36 | 10 | 9 | ±1 |
| AKH-0.66/K-φ16 | 31 | 50 | 29 | 28 | 42 | 16 | 17 | |
| AKH-0.66/K-φ24 | 39 | 71 | 46 | 36 | 52 | 24 | 23.5 | |
| AKH-0.66/K-φ36 | 42.5 | 82 | 58 | 40 | 56 | 33.5 | 35 | |
| AKH-0.66/K-φ50 | 46.5 | 110 | 90 | 54 | 66.5 | 47 | 52 | |

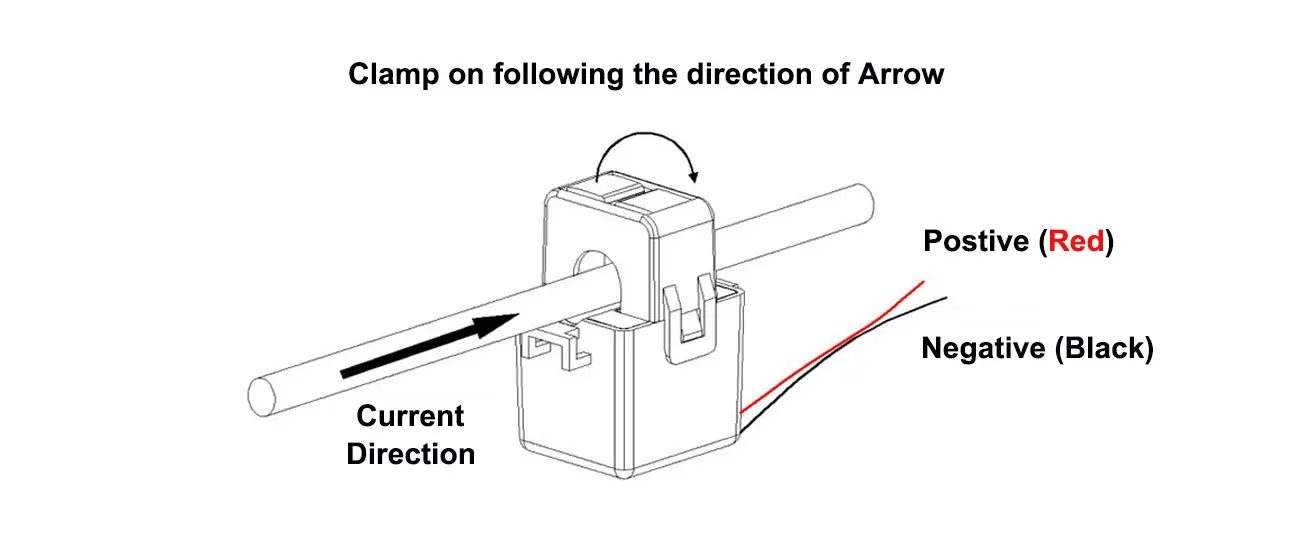

Installation Instruction
Installation Instruction of AKH-0.66/K-φ Series Split Core CTs

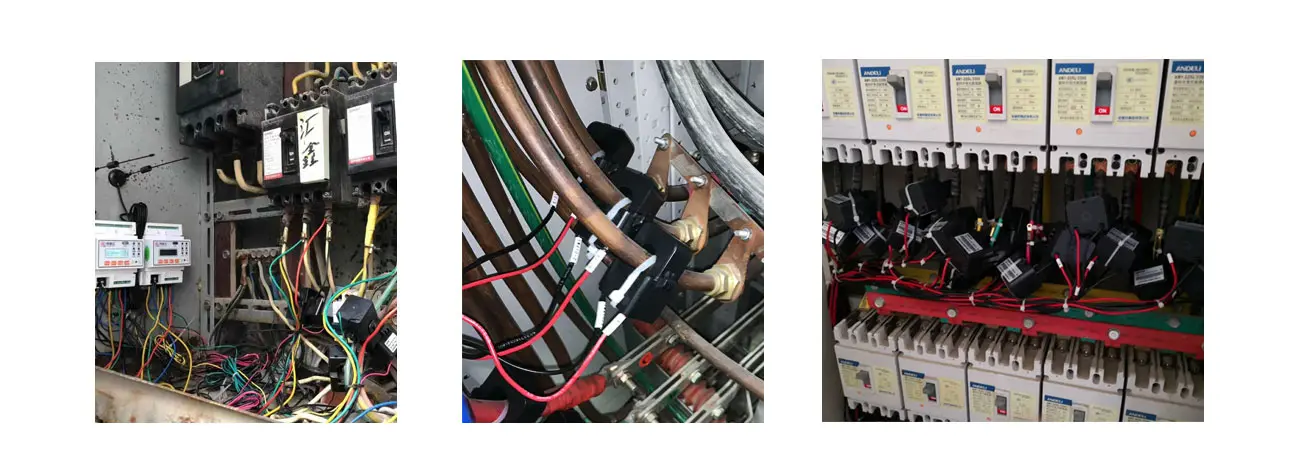

Work Site Application
Work Site Application of AKH-0.66/K-φ Series Split Core CTs
Technical Datasheet
| Model Name | Current Ratio (Primary/Secondary) | Accuracy Class | Rated Load (VA) | Perforation Hole Size (mm) |
|
AKH-0.66/K-φ10 |
5A/1.25mA | 0.5 | 10 | φ10 |
| (10~20)A/5mA | ||||
| (40~60)A/20mA | ||||
| AKH-0.66/K-φ16 | (20~50)A/10mA | φ16 | ||
| (40~100)A/20mA | ||||
| 100A/40mA | ||||
| AKH-0.66/K-φ24 | (60~200)A/20mA | φ24 | ||
| (100~250)A/40mA | ||||
| 400A/100mA | ||||
| AKH-0.66/K-φ36 | (100~200)A/10mA | φ36 | ||
| (200~400)A/20mA | ||||
| (300~600)A/100mA | ||||
| 400A/40mA | ||||
| 600A/75mA | ||||
| AKH-0.66/K-φ50 | (600~800)A/100mA | φ50 |
