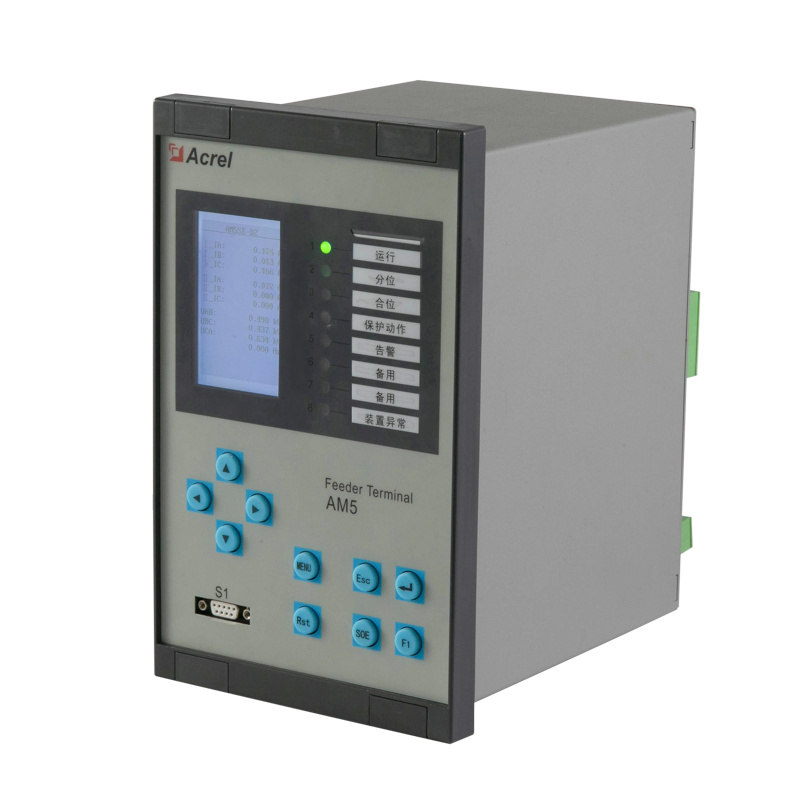

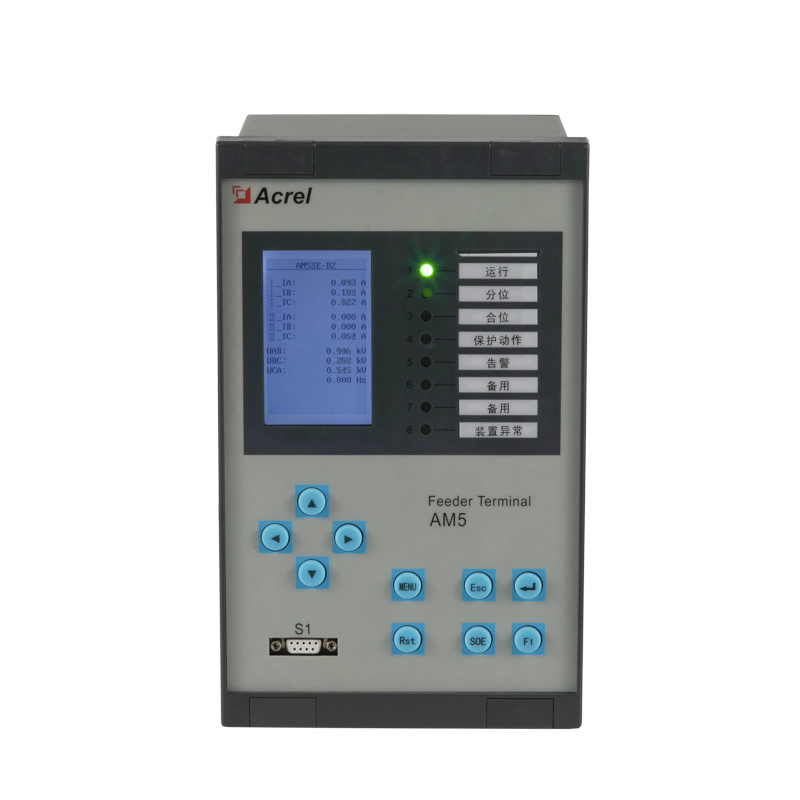

AM5SE Medium Voltage Line Protection Relay

Power Supply AC/DC 100V or AC/DC 220V
Display Digital LCD Display
Accuracy ±0.5%
Rated current AC 5A/1A
Rated frequency 50Hz or 60Hz
Over current 3 stages, IDMT
Relative humidity 5%~95%
Auto-recolse support
Certificate CE

Contact us Download

Characteristics

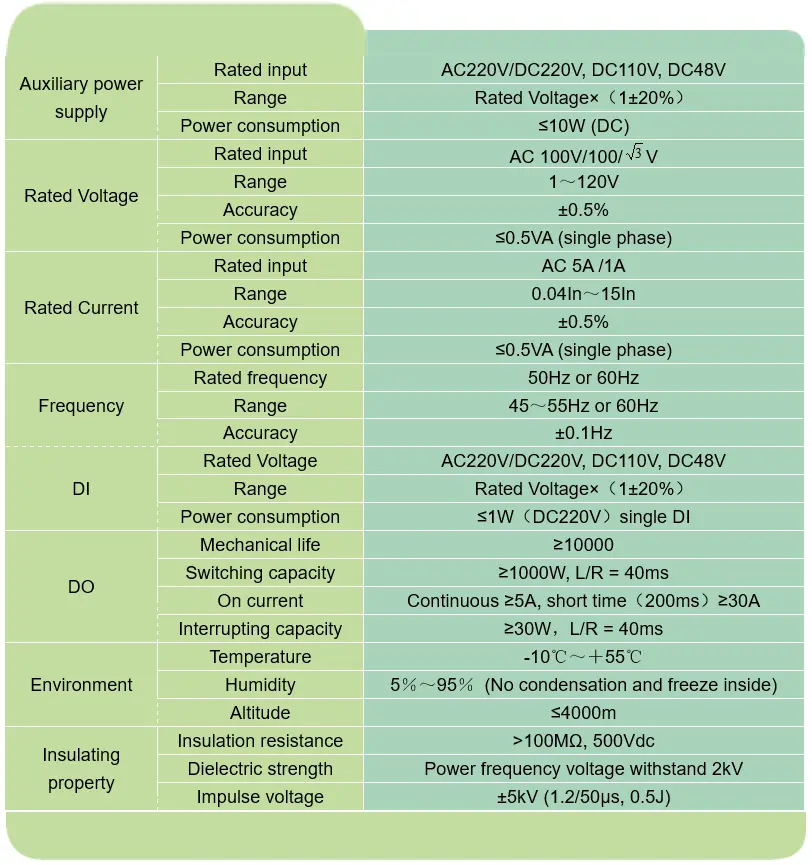

Parameters

Download

General

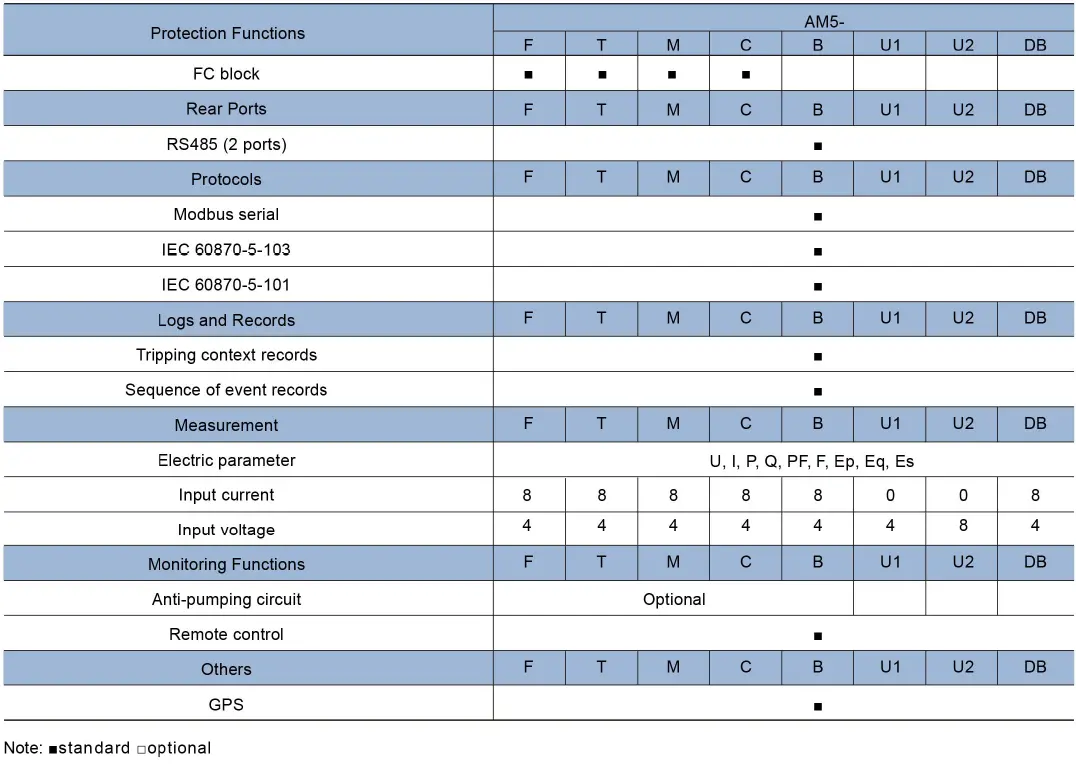

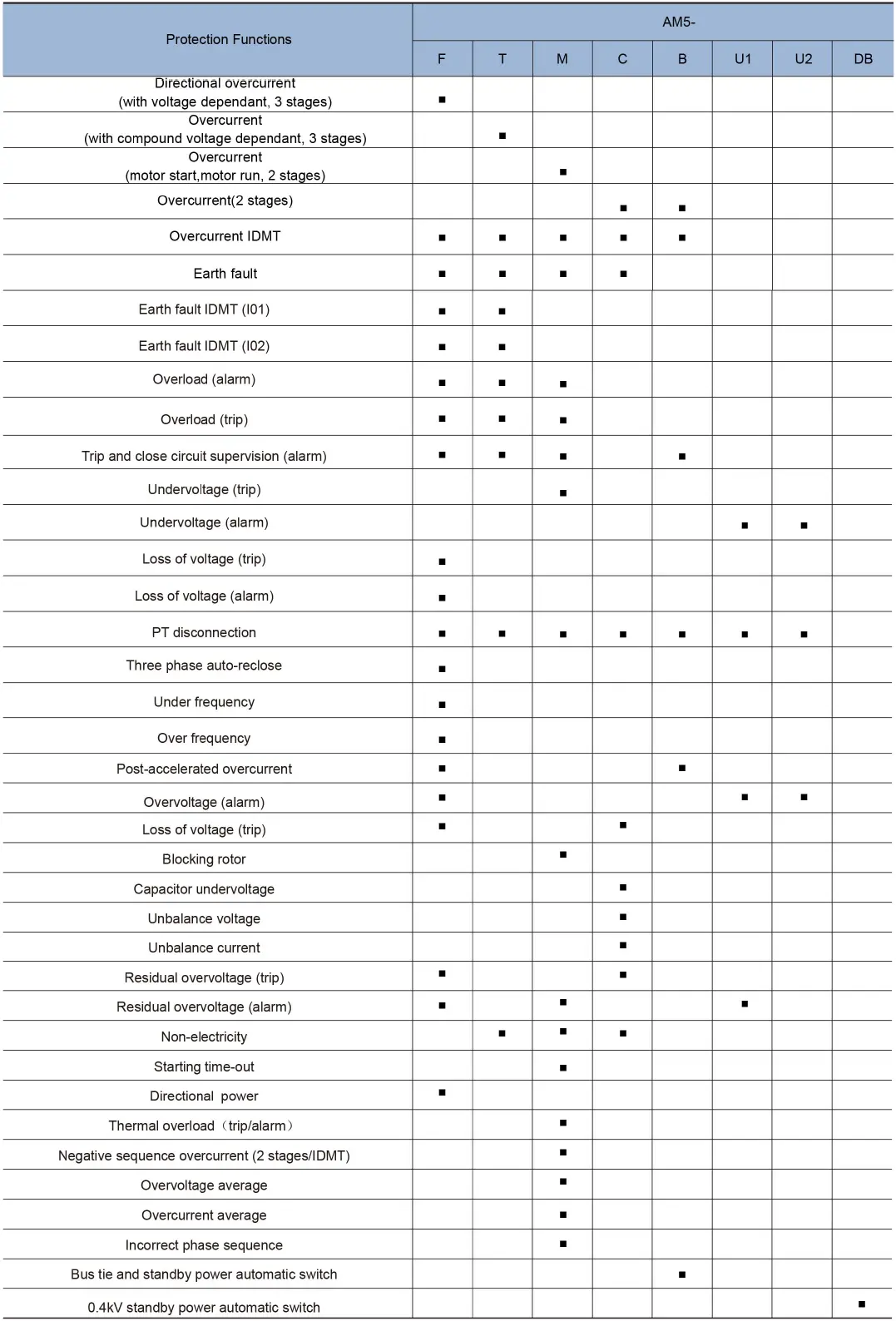

AM5 Series Protection Relay:A complete set of protection, related to the application;8 current input, 4 voltage input, 16 DI, 10 DO.

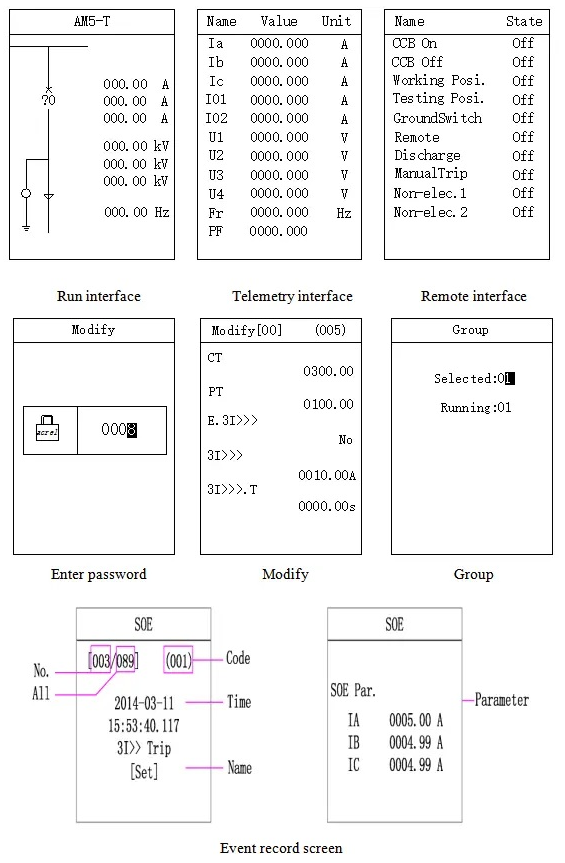

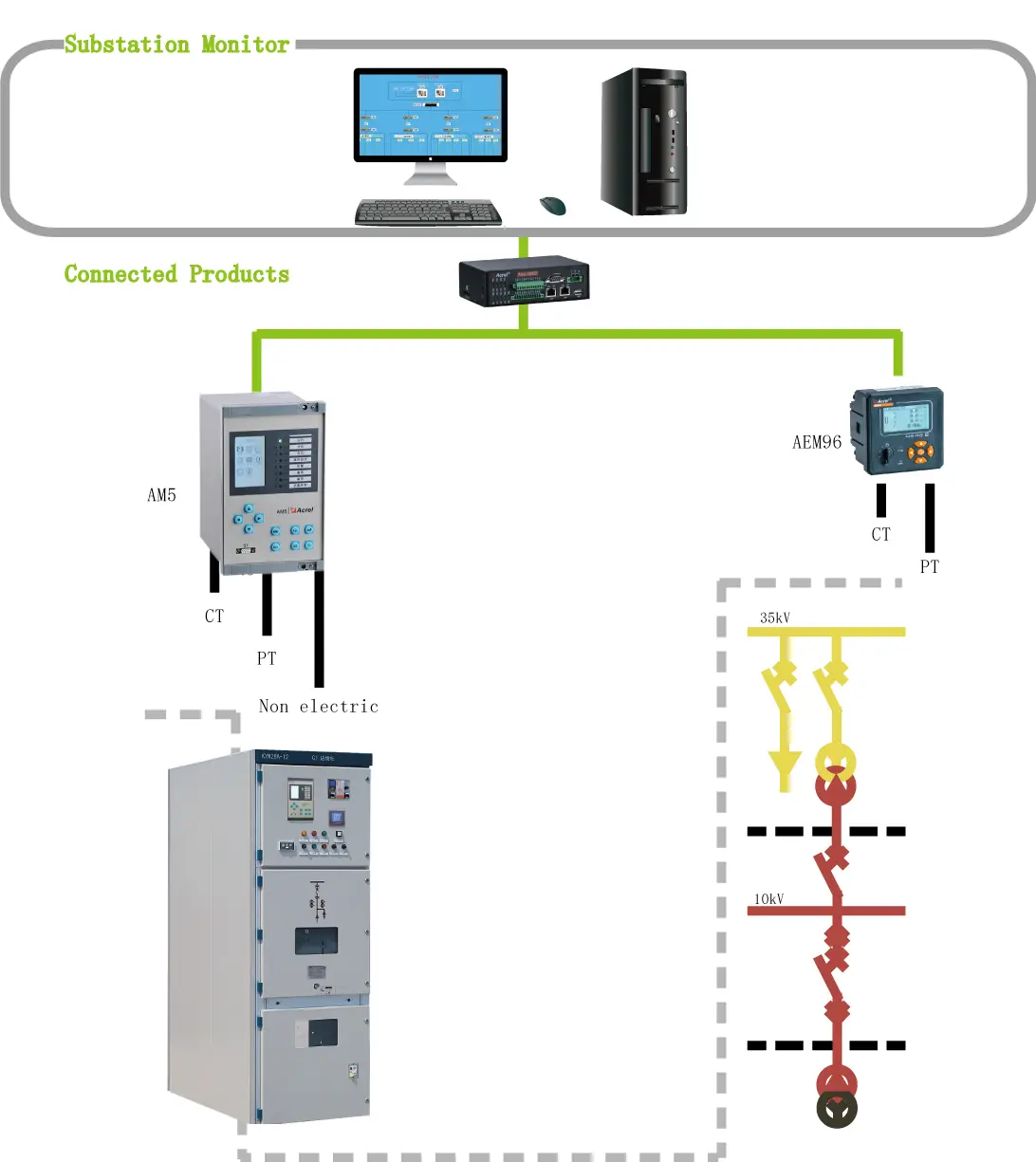

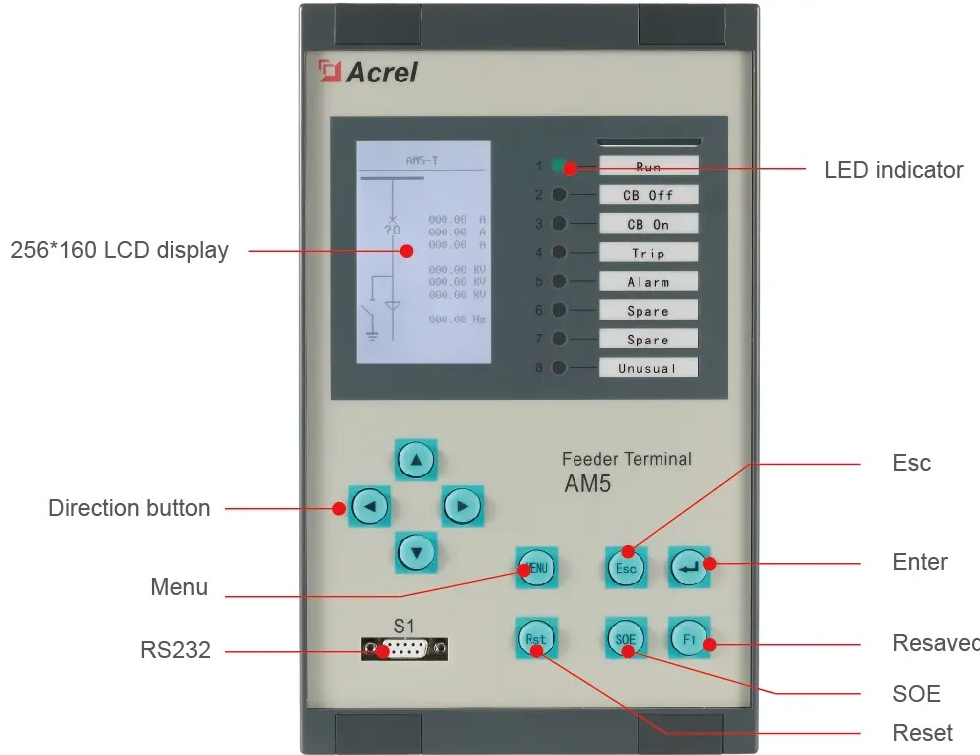

Products Overview

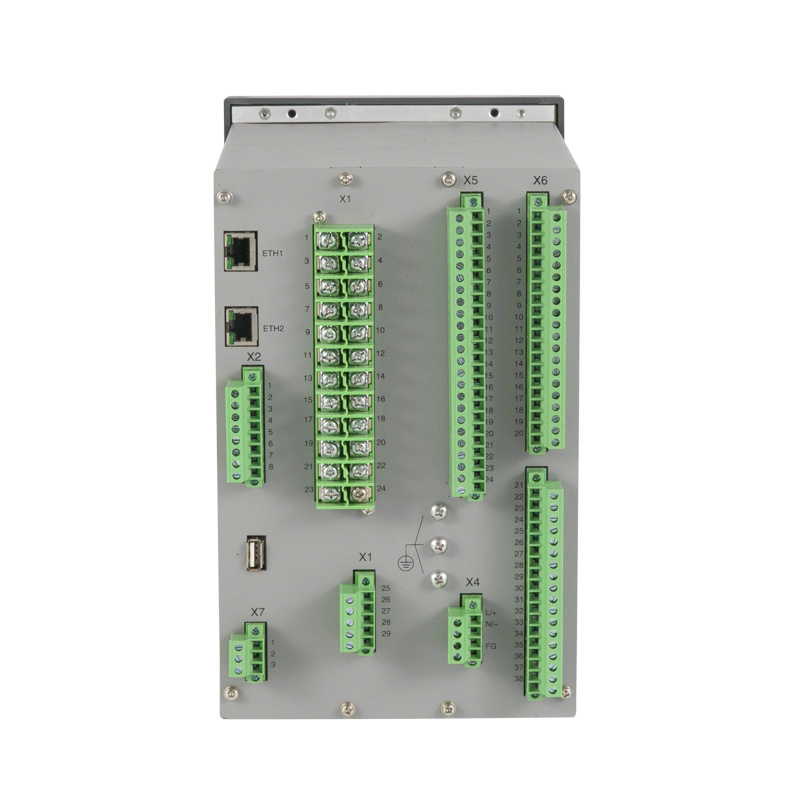

Connection

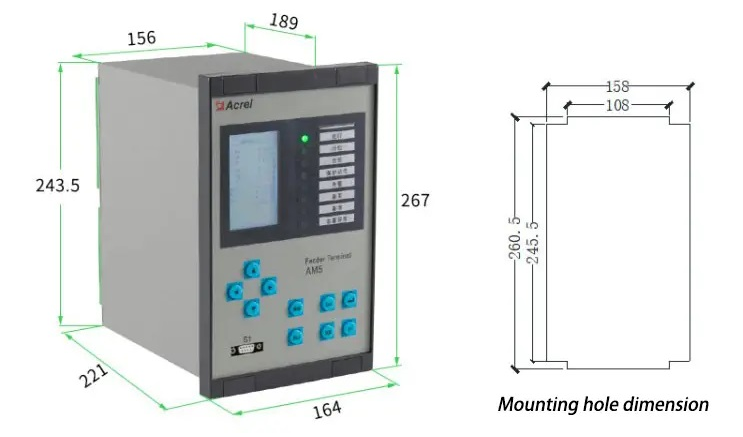

Dimention

Package

HS Code: 8536300000
Net Weight: 3kg/pcs

Technical Datasheet

Download_file

AM5SE Protection Relay User Manual

Download_file

AM5 CE-EMC

Download_file

AM5 CE-LVD

Download_file

AM5-IEC60255 Type Inspection Report
