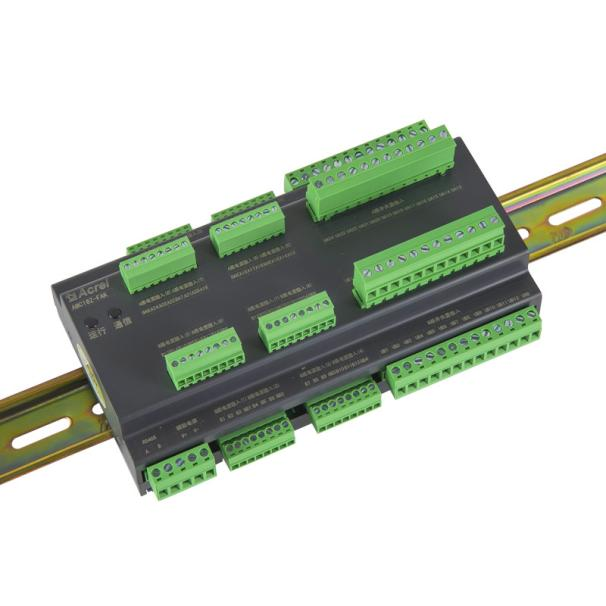

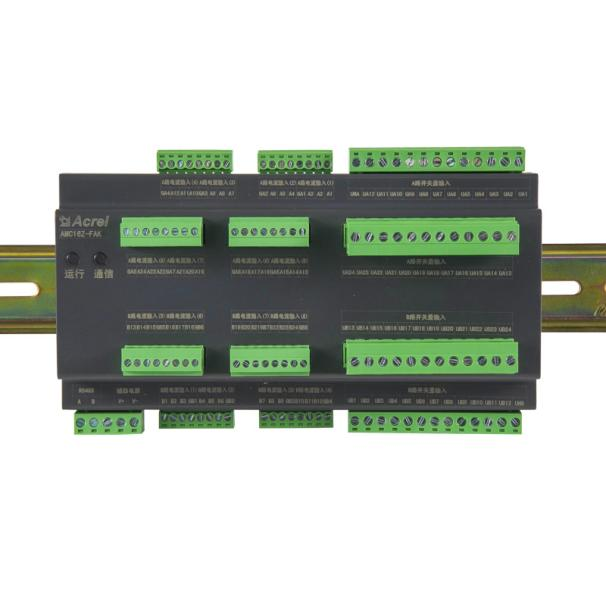

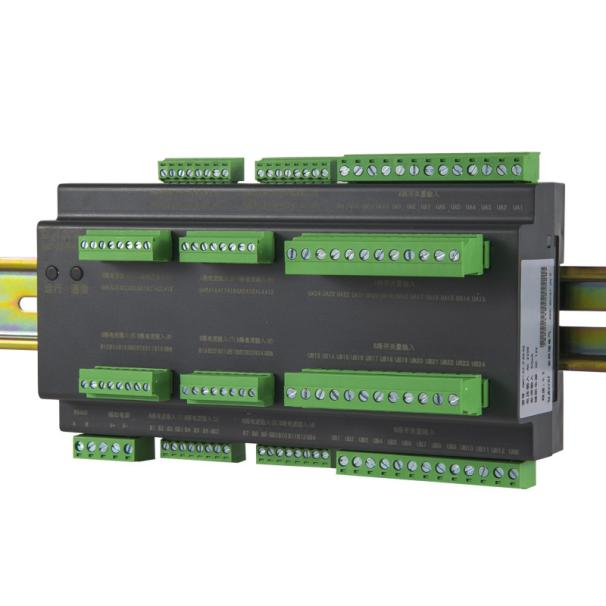

AMC16Z-FAK48 Multi channel din rail ac power meter
General
AMC16Z series AC precision power distribution monitoring device is specially designed for data center server power management.The device designed exquisite, can provide A + B 2 incoming and 96 outgoing’s electrical parameters, the input and output switch and the state of lightning protection device with real-time monitoring. All alarm threshold of measurement channels can be set in separate. Over-outgoing triggers system acoustooptic warning immediately. Highly integrated monitoring loop is realized in the volume of traditional instruments.

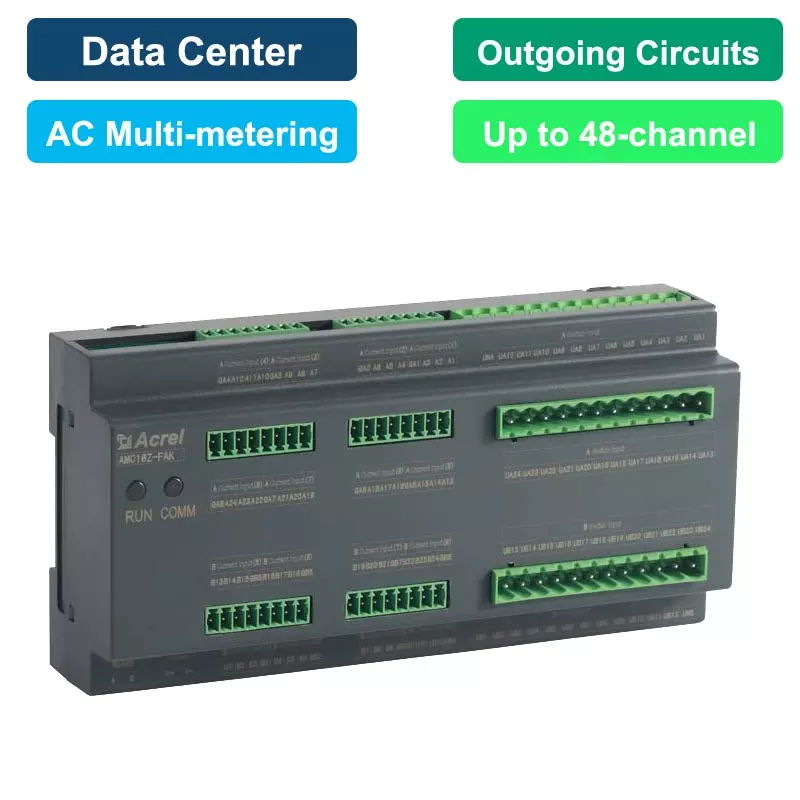

Products Overview

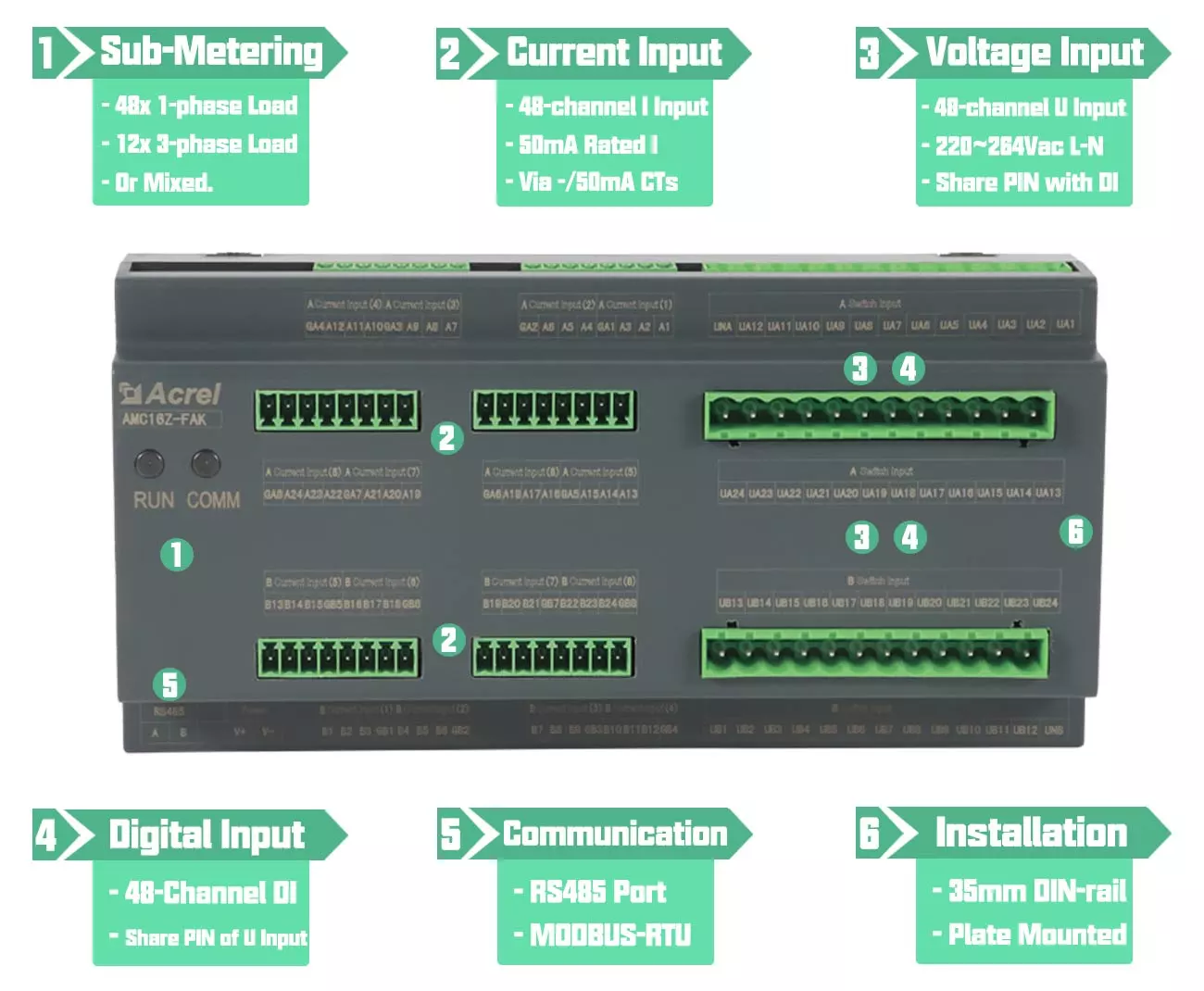

Features
|
Dual AC Outgoing Circuits Monitoring ● A+B Dual-side independent AC Circuits Monitoring ● Full Electrical Parameters Monitoring ● Outgoing Branch Circuits Multi-metering |
|
|

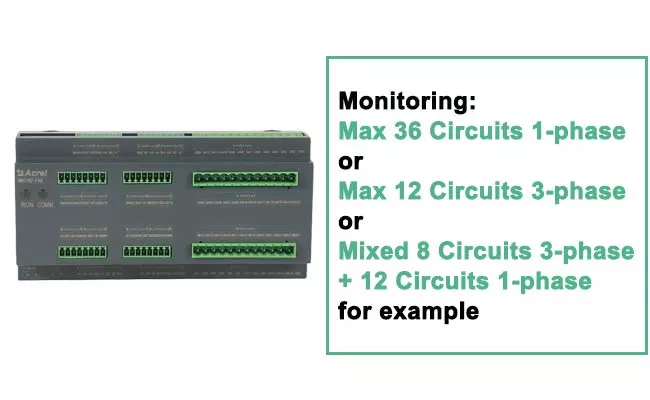

Multiple Branch Circuits Metering ● Both 1-phase&3-phase Metering ● Max 36 circuits 1-phase ● Max 12 circuits 3-phase ● Mixed 8 circuits 3-phase and 12 circuits 1-phase for example |
|
|

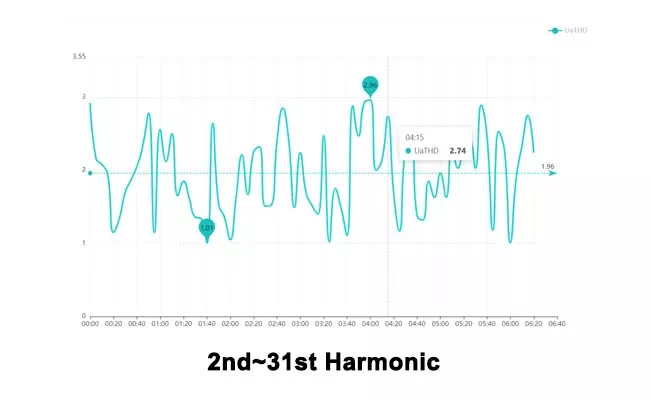

Power Quality Analysis ● 2nd~31st Harmonic ● Total Harmonic |
|
|
Switch On/Off Status Detection ● A+B Dual Side ● 48-channel of DI (Digital Input)
|
|

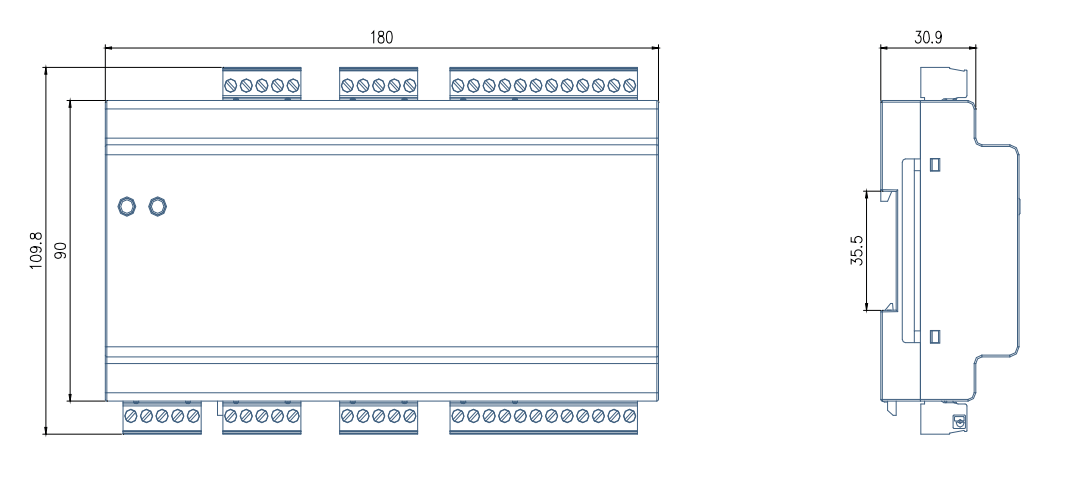

Dimension

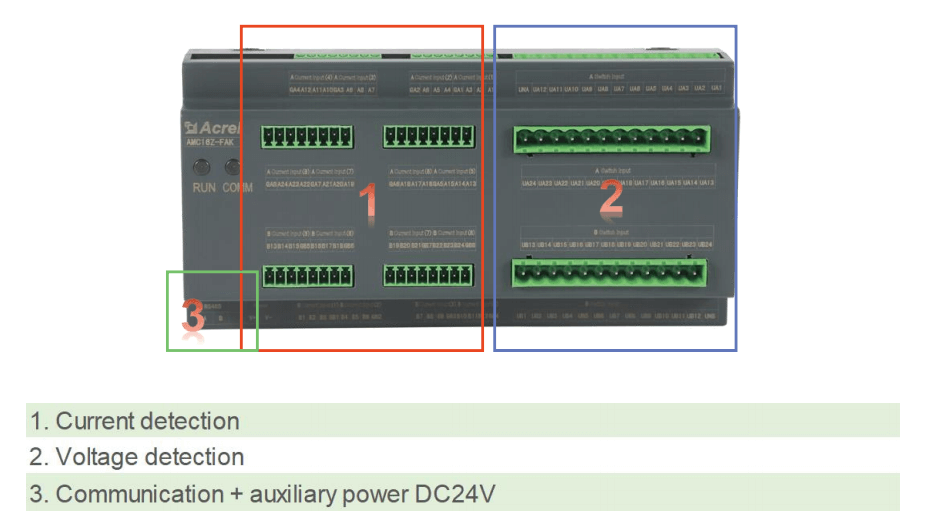

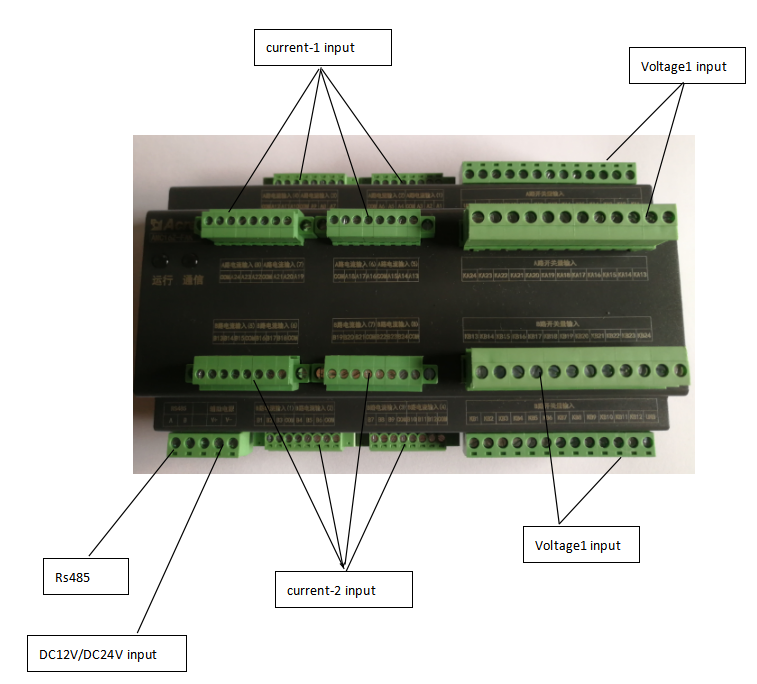

Wiring Instruction

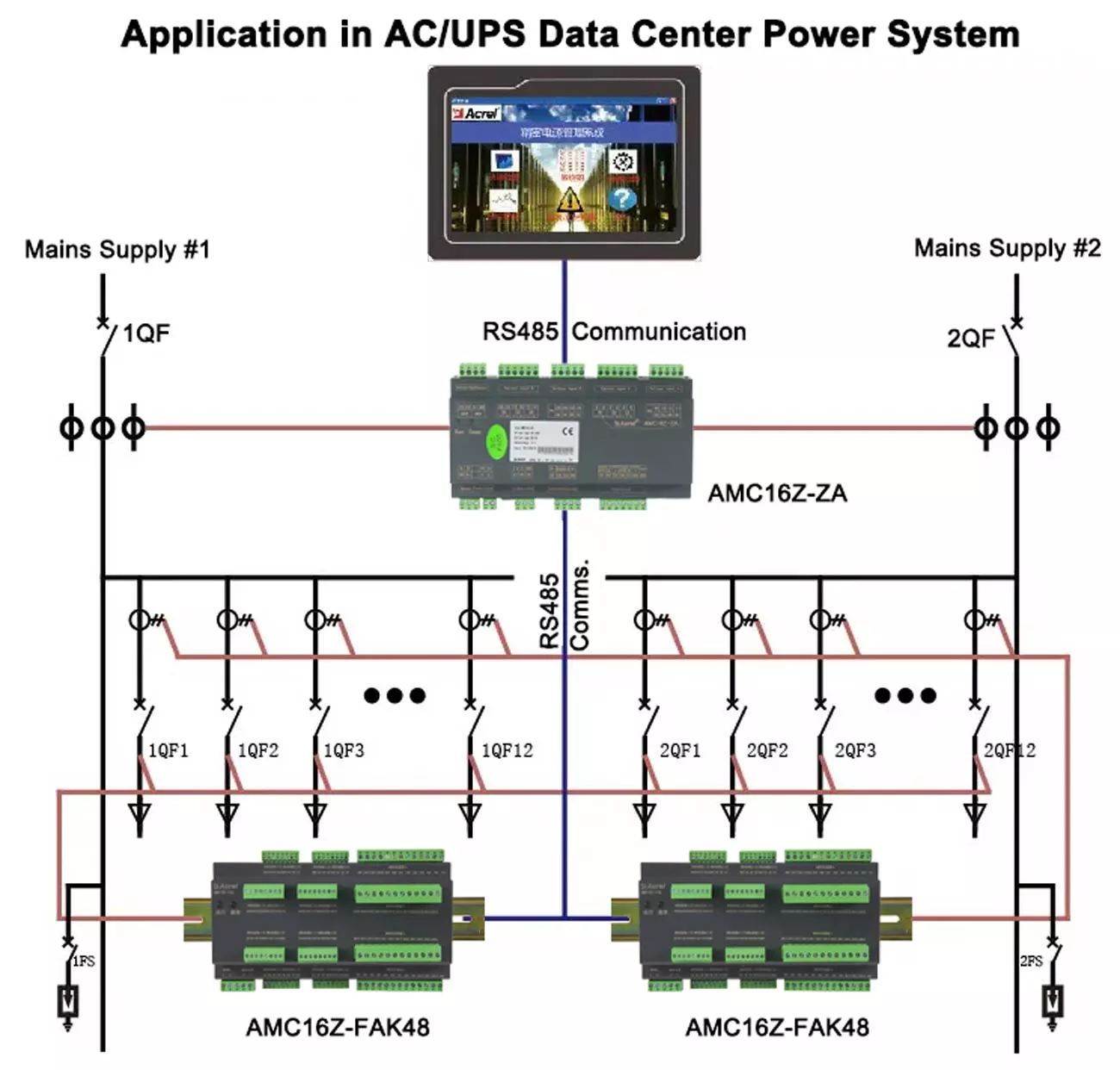

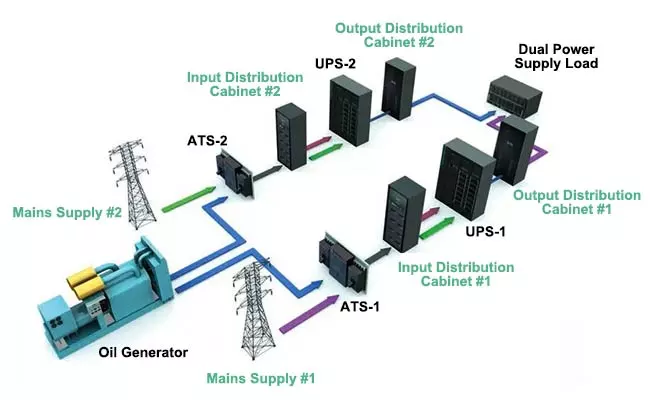

Application
Technical Datasheet
|
Instrument model |
AMC16Z-FAK24 |
AMC16Z-FAK48 |
|
|
Measurement parameters |
Voltage, current, frequency, active power, reactive power, power factor, active power, reactive power, switching state |
||
|
2-31 times harmonics |
|||
|
Bus Voltage |
Rated |
220VAC |
|
|
|
Measurement |
±20% |
|
|
Overload |
Instantaneous voltage 2 times/second |
||
|
Current outgoing line loop |
Rated |
50mA |
|
|
Range |
0.125～60mA |
||
|
Overload |
Duration 1.2 times, instantaneous 10 times/second |
||
|
Input frequency |
45～60Hz |
||
|
Measurement accuracy |
Outgoing line |
Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1 |
|
|
Auxiliary power supply |
Power supply by AMC16Z-ZA;DC 12-24V when used alone |
||
|
Environment |
Temperature |
Working:-15℃～55℃ Storage:-25℃～70℃ |
|
|
Humidity |
Relative humidity |
||
|
Altitude |
≤2500m |
||
|
Communication |
RS485/Modbus-RTU |
||
|
Installation method |
DIN35mm Guide rail or bottom plate mounting |
||
|
IP grade |
IP20 |
||
|
Class of pollution |
2 |
||
|
Safety |
Insulation |
All terminals and the insulation resistance between the conductive pieces not below 100 m Ω |
|
|
|
Withstand voltage |
A-channel voltage and current signal // B-channel voltage and current signal // other ports meet AC2kV 1min between pairs, leakage current should be less than 2mA, no breakdown or flash over phenomenon. |
|
|
Electromagnetic compatibility |
Anti static interference |
Level 4 |
|
|
Resistance to radiation of Radio frequency electromagnetic |
Level 3 |
||
