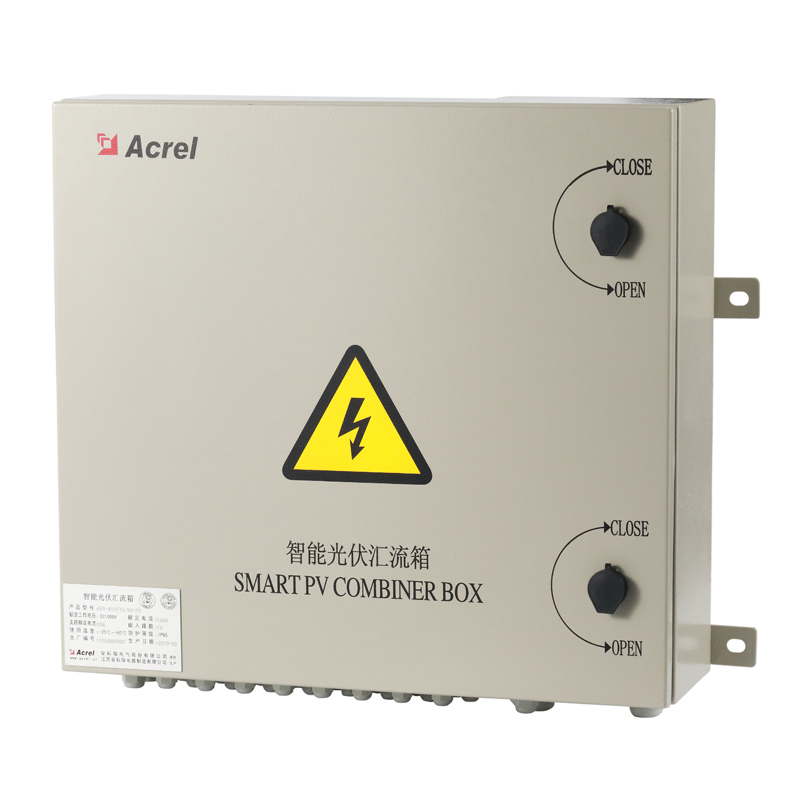

APV Series Smart Solar PV Combiner Box
General
In a large photovoltaic power generation system, it is necessary to connect numerous photovoltaic battery packs in the series and parallel combination to reach the required voltage and current value in order to maximize the power generation efficiency. The main purpose of APV series smart photovoltaic combiner box is to conduct the first-stage confluence for the photocell array input which is used to reduce the wiring between photovoltaic battery array and inverter, optimize the system structure, improve the reliability and maintainability.
The APV series smart photovoltaic combiner box not only provides lightning protection confluence function, but also provides the function of photocell current measurement, detection for solar panel operation in the photocell array, battery voltage after confluence, the total confluence power, the branch power, acquisition of combiner lightning protector state, acquisition of DC breaker state, the relay contact output, the interface with the air speed, temperature sensor and irradiator etc. available for customer’s option.
The device of standard configuration has a RS485 interface which can upload the picked-up data and equipment state to the monitoring system.
Products Overview

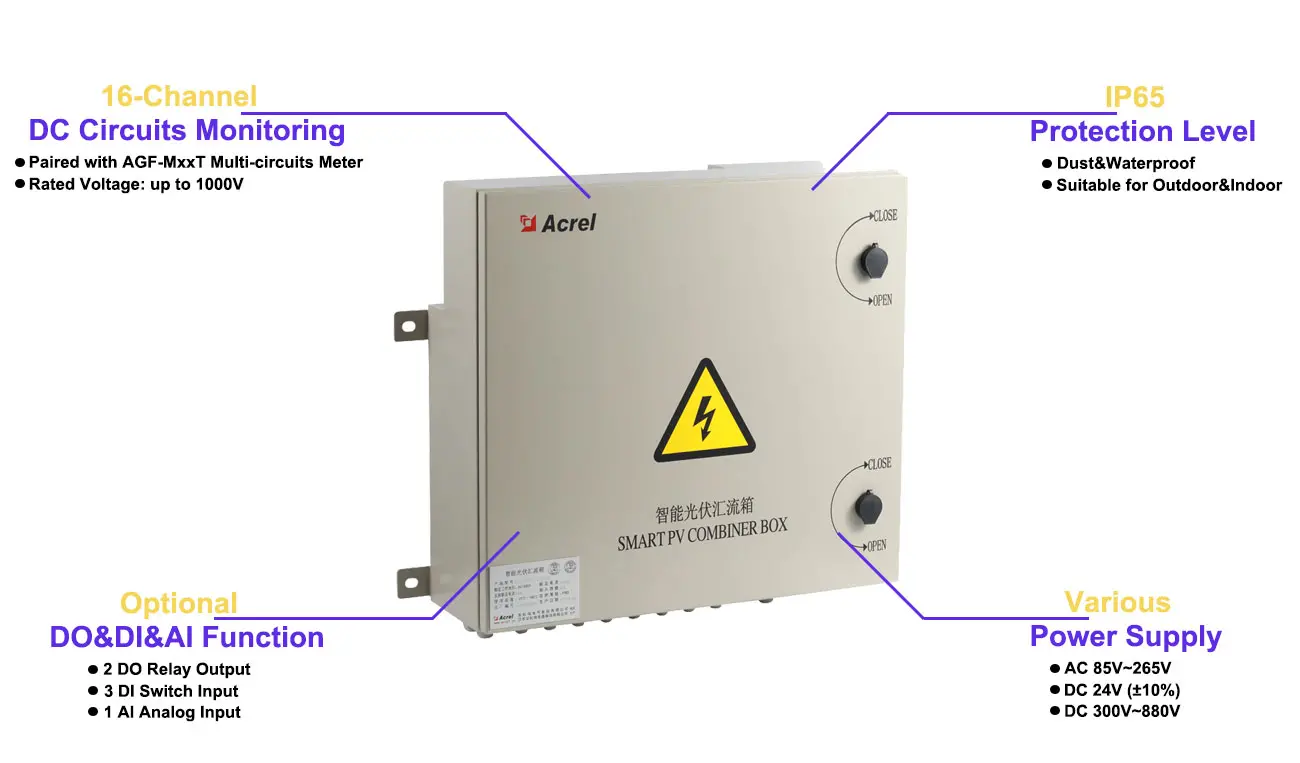

Features
|

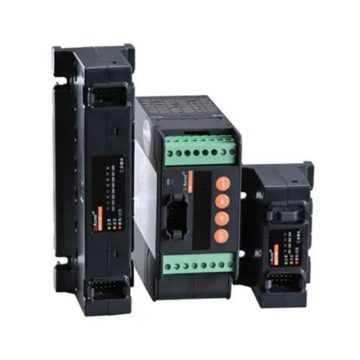

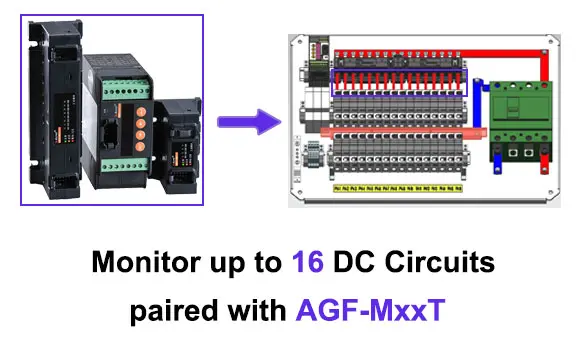

16-Channel DC Circuits Monitoring ● Paired with AGF-MxxT Multi-circuits Meter ● Rated Voltage: up to 1000V |
|
|

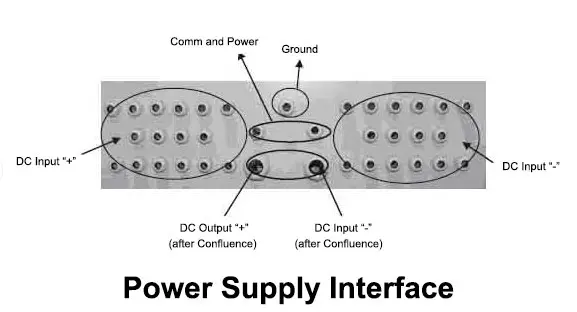

Various Power Supply Option ● AC 85V~265V ● DC 24V (±10%) ● DC 300V~880V |
|
|

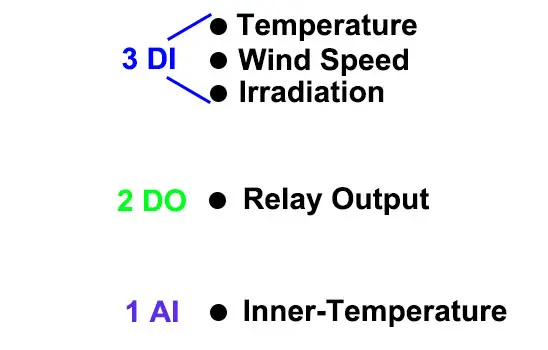

Optional DO&DI&AI Function ● 2 DO Relay Output ● 3 DI Switch Input ● 1 AI Analog Input |
|
|

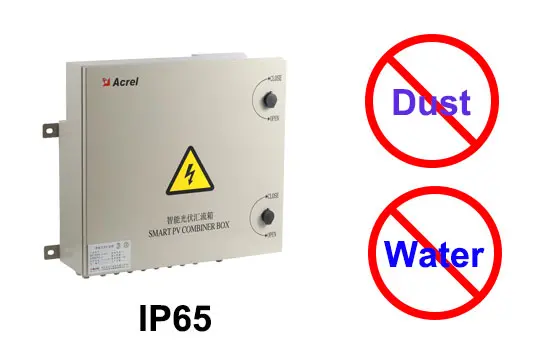

IP65 Protection Level ● Dust&Waterproof ● Suitable for Outdoor&Indoor Circumstances |
|
Sample Display

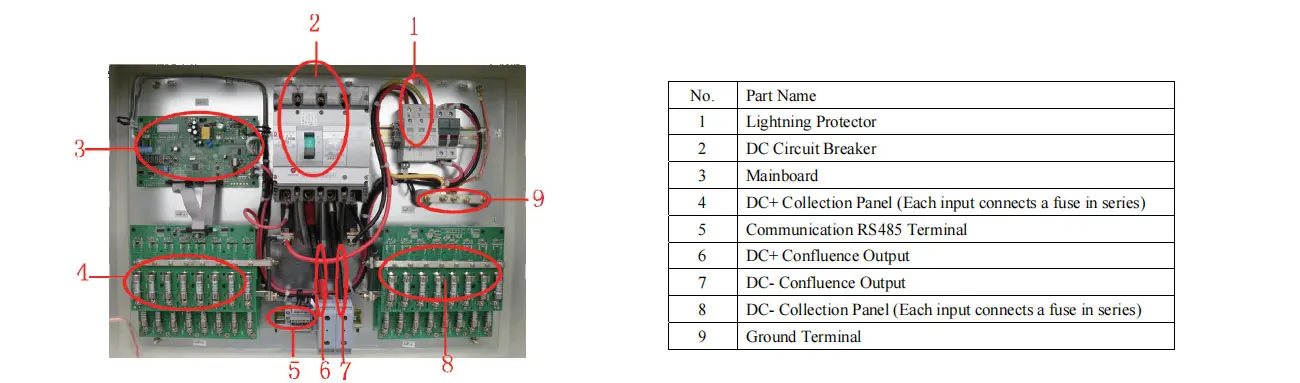

Type I

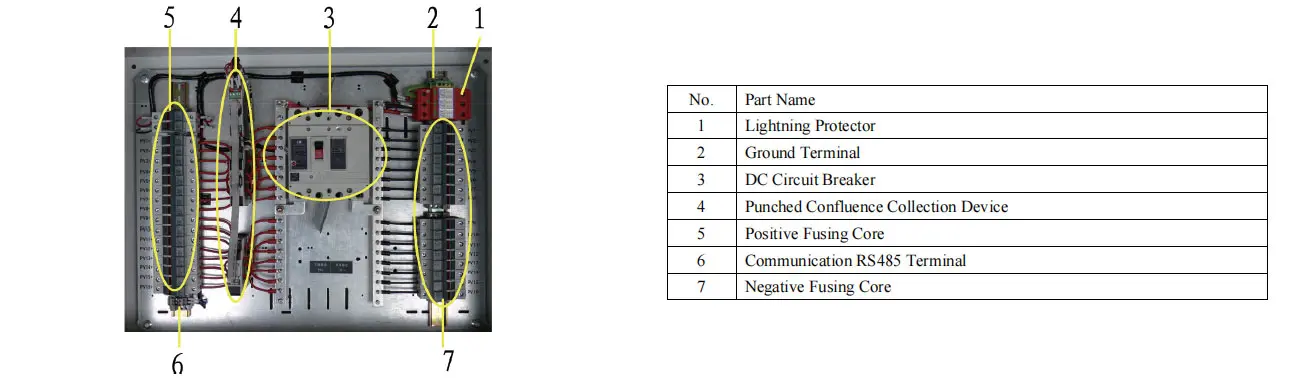

Type II

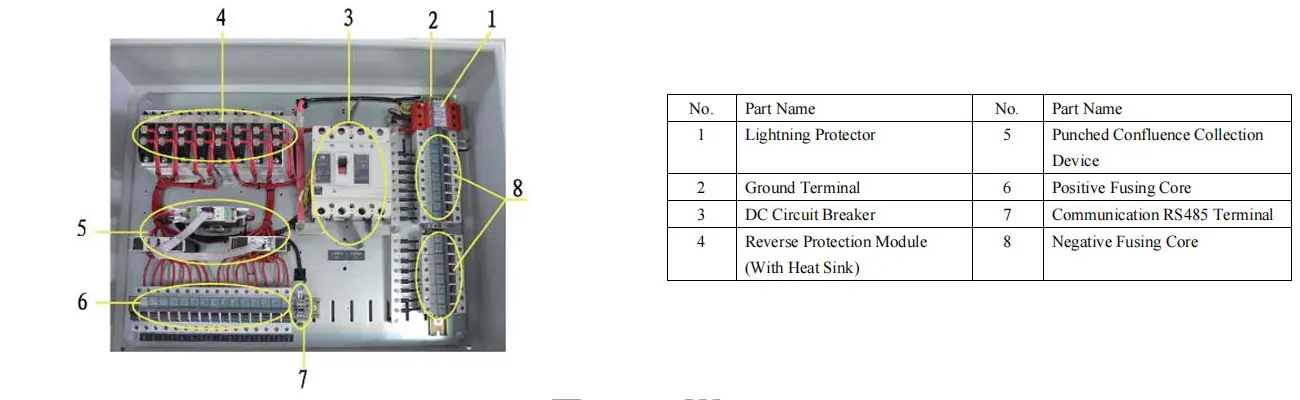

Type III
Application

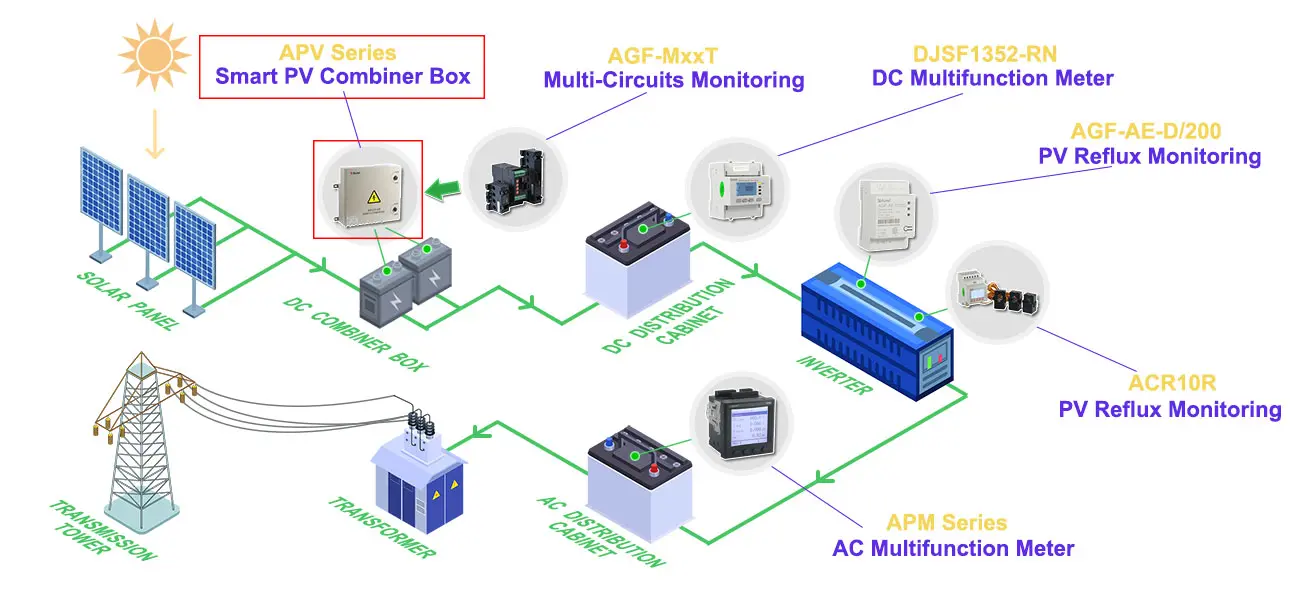

Solor PV Power Distribution Monitoring Solution

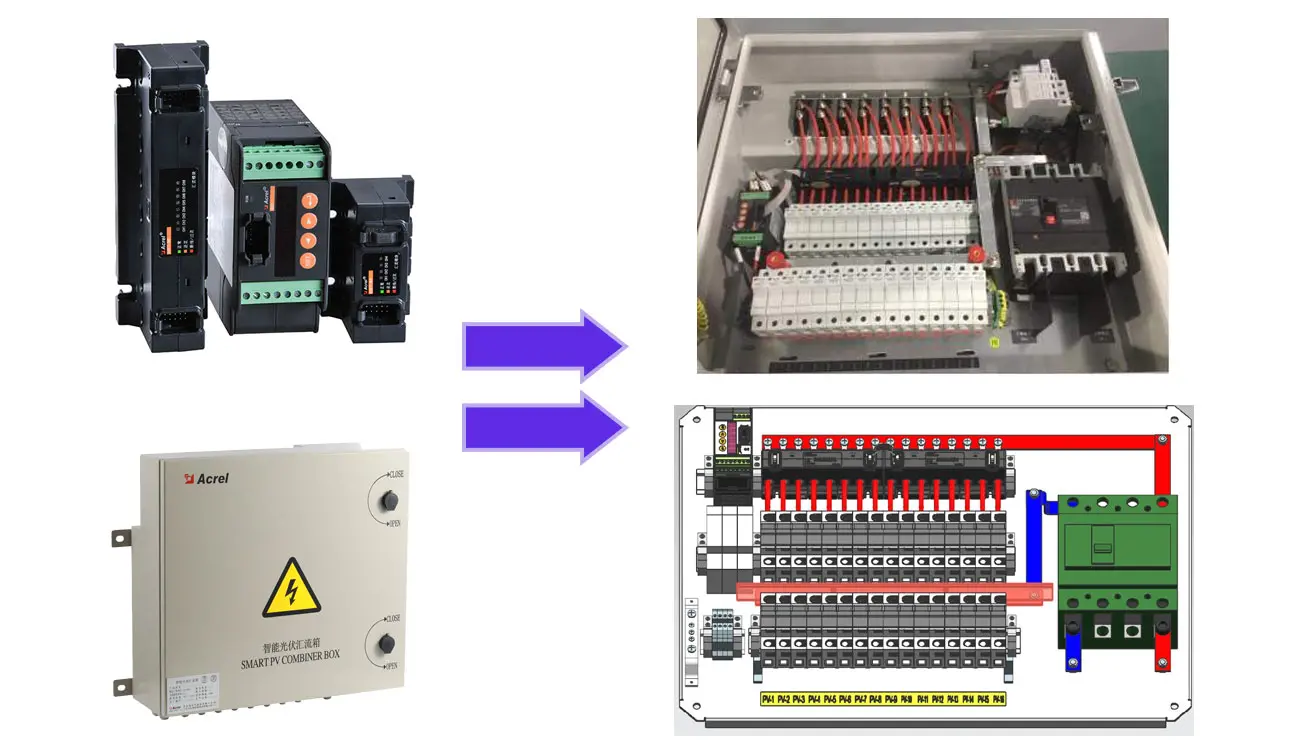

Practical Application of AGF MxxT in PV Combiner Box

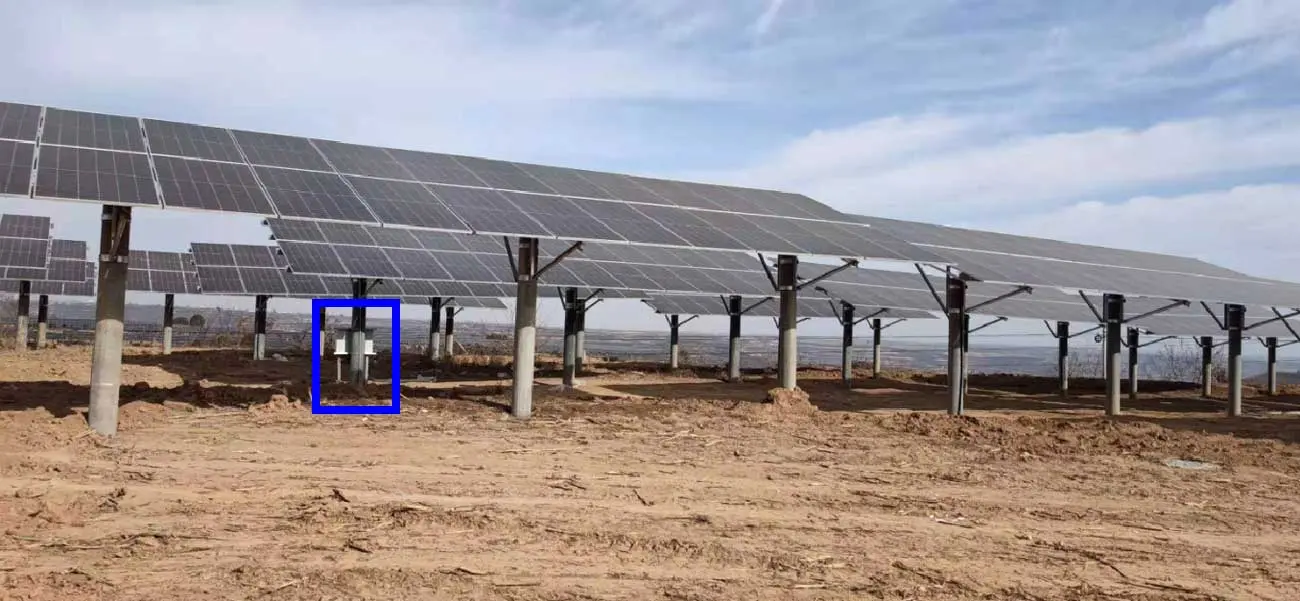

APV Smart Solar PV Combiner Box installed under PV Array
Technical Datasheet
|
Product Type |
APV-M4XX |
APV-M8XX |
APV-M12XX |
APV-M16XX |
|
|
Input Channels |
4 |
8 |
12 |
16 |
|
|
Input Scope |
DC ± 18A |
||||
|
Response Time |
1s |
||||
|
Measuring Accuracy |
Class 0.5 for PV battery measurement, Class 0.2 for the external analog |
||||
|
RS485 Comm. |
RS485 ModBus-RTU protocol, 4800/9600/19200/38400bps |
||||
|
Additional Function |
Relay Output |
2 group switches 5A/AC250V (5A/DC 30V) |
|||
|
Switch Input |
3 groups of external state inputs (optocoupler or dry contact) |
||||
|
Analog Input |
PT100, DC 0(4)~20mA, DC 0~10V and 24V power supply with the max. current ≤25mA |
||||
|
Humidity/Temp. |
The working temperature: -25~+60℃, R.H.: 95%, the worksite does not have the condensed and corrosive gas |
||||
|
Altitude |
≤3000m |
||||
|
Insulation Resistance |
≥100MΩ |
||||
|
Auxiliary Power |
Auxiliary Power: AC85V～265V or DC 300～880V or DC 24V(±10%) |
||||
|
Case Waterproof Rating |
IP65 |
||||
|
Weight |
Approx. 30kg |
||||
|
Volume(W×H×D) |
700×575×220 |
||||
