BA10-AI / I (V) AC 0-50A Current Transducer
General

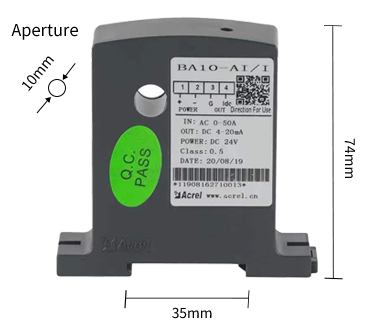

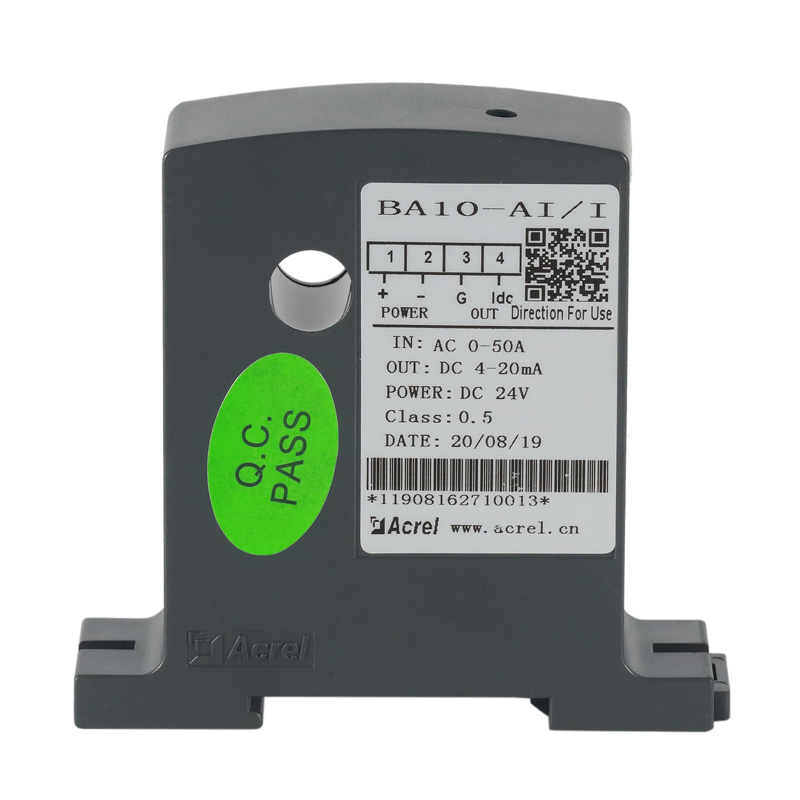

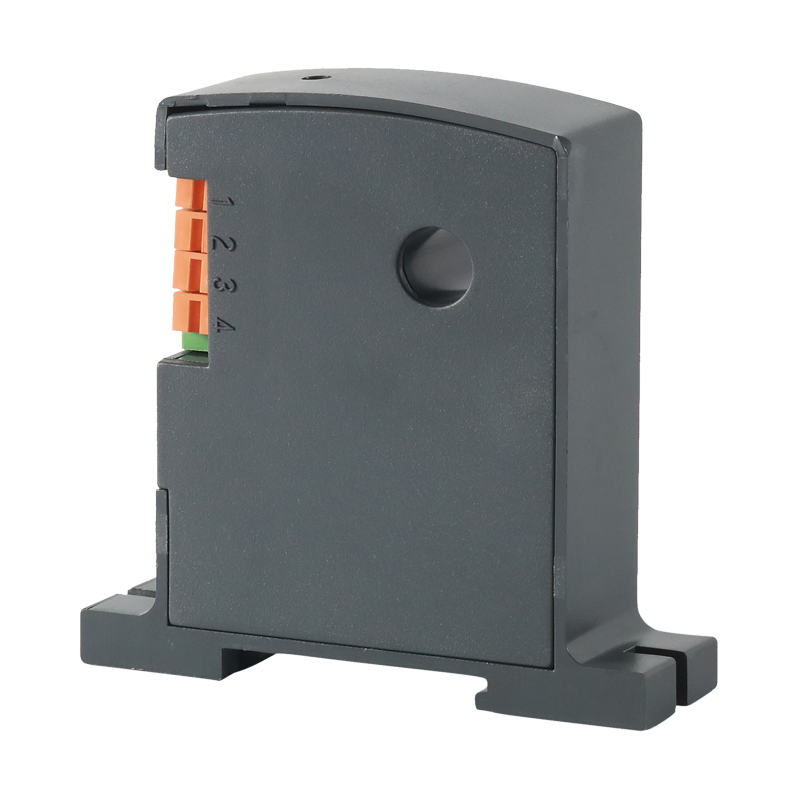

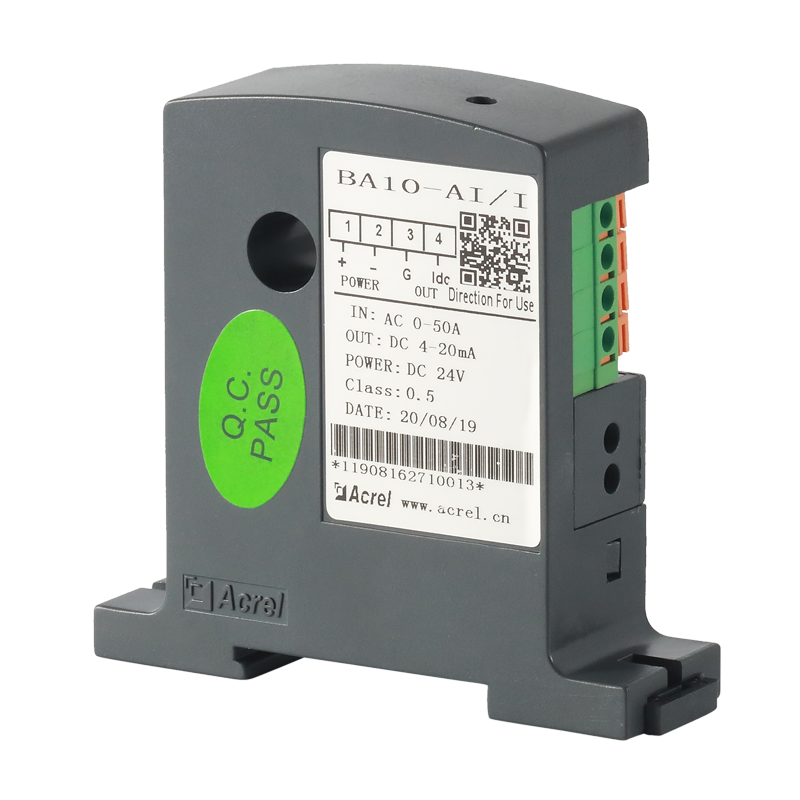

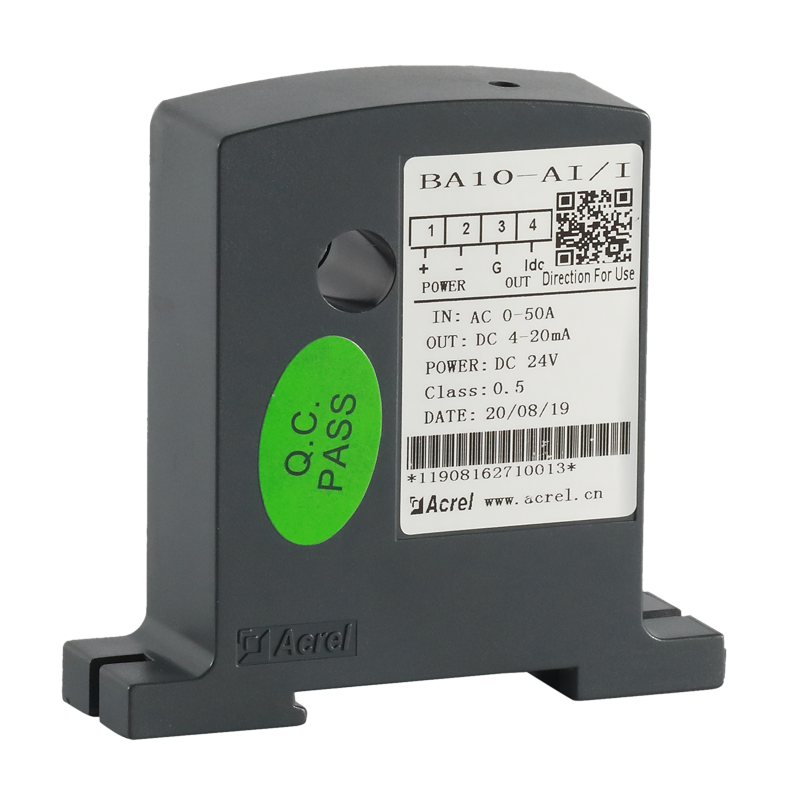

Acrel BA series AC Current Transducer performs real-time measurement of alternating current in the power grid according to the principle of electromagnetic induction. They utilize precision constant current technology and linear temperature compensation technology to isolate the measurement current and convert it to a DC signal.

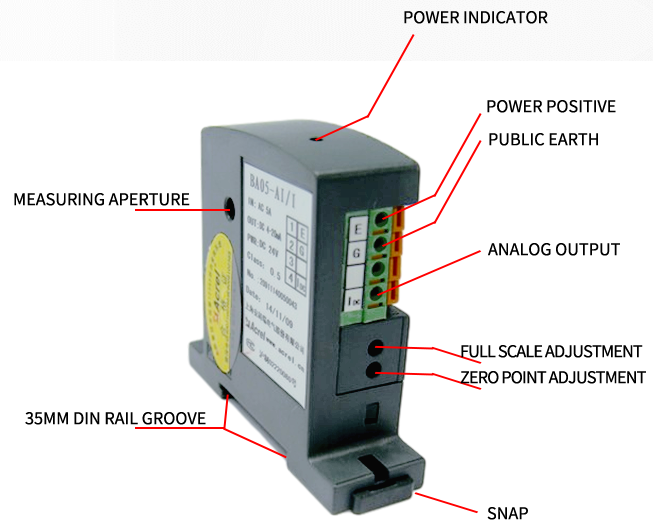

Products Overview
Dimention
Installation Wiring

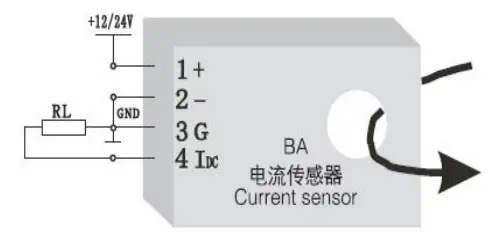

Wiring
Installation
Screw fixed installation

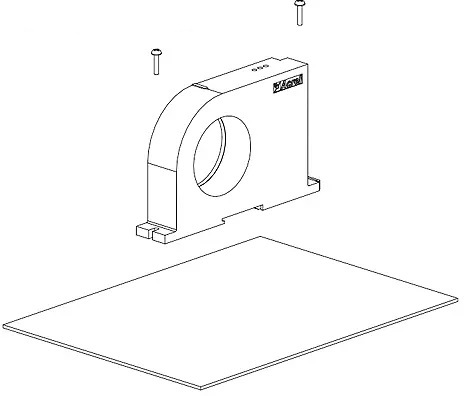

On the bottom panel of the cabinet, choose a suitable place to open two threaded holes corresponding to the position of the fixed hole of the installed sensor; After placing the sensor, install the positioning screw.

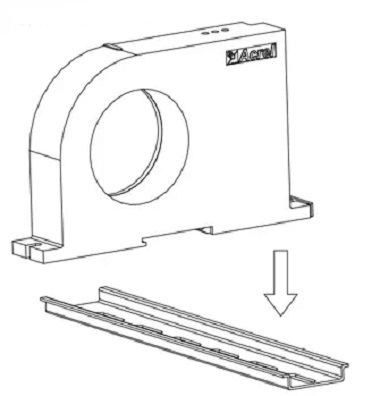

Din Rail installation
On the bottom panel of the cabinet, choose a suitable place to open two threaded holes corresponding to the position of the fixed hole of the installed sensor; After placing the sensor, install the positioning screw.

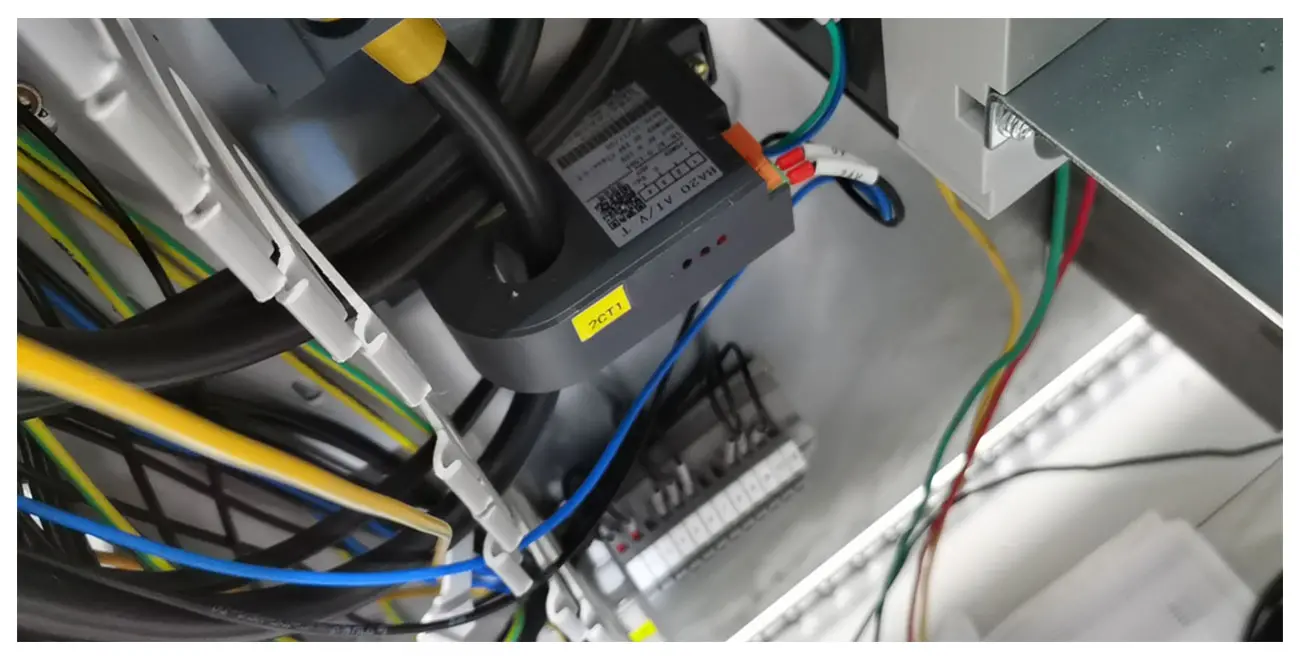

Application
Package
Parameters
|
AuxiliaryPower |
DC 12V/24V |
|
Consumption |
≤1W |
|
Through-hole size |
Φ10mm |
|
Input Current |
AC 0~(8-50)A |
|
Output Nominal value |
DC4-20mA ,or 0-20mA,0-5V,0-10V etc |
|
Output Load resistance |
Current output≤500Ω,Voltage output≥1kΩ |
|
Accuracy Class |
0.50% |
|
Response time |
≤350ms |
|
Temperature |
Operation:-10 to +55℃ Storage:-25 to+70℃ |
|
Temperature coefficient |
≤200ppm/℃ |
|
Installation |
(Rail)DIN35, fix on cubicle with screws |
|
Standards |
GB/T13850 CE |
