ATE Series Wireless Temperature Sensor

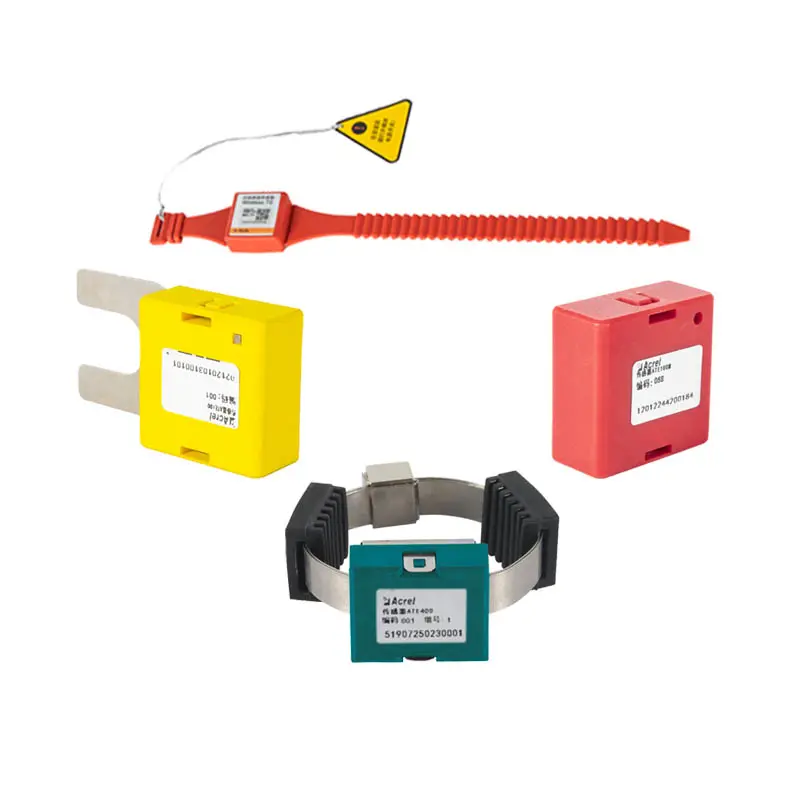

Products Overview

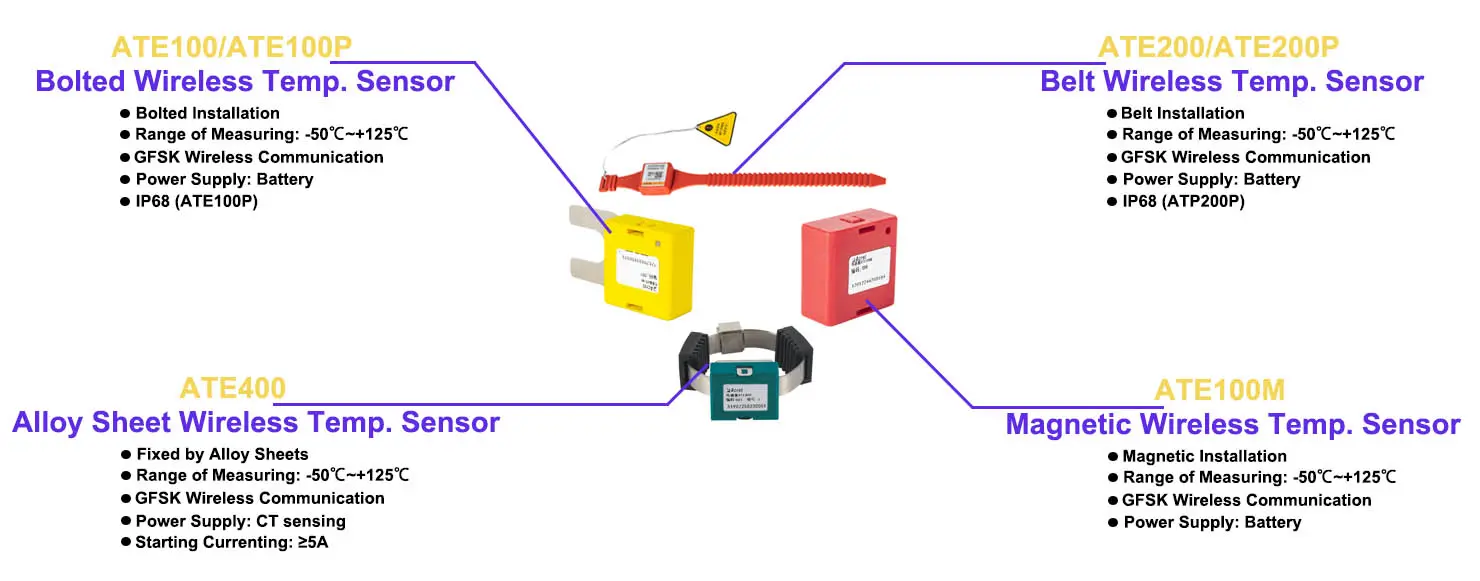

Features
|

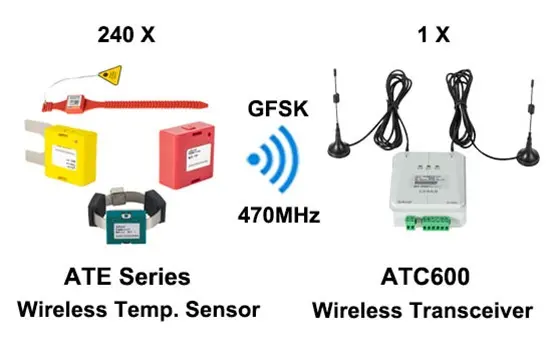

GFSK Wireless Communication ● Wireless Frequency: 470MHz ● Communication Distance: 150m in open area |
|
|
Wide Range of Temperature Measuring ● Extreme Range of Measuring: -50℃~+125℃ (General Type) ● Extreme Range of Measuring: -50℃~+125℃ (IP68 Type) ● Recommended Operation Temperature: ≤85℃ (Battery power supply) ● Recommended Operation Temperature: ≤105℃ (CT sensing power supply) |
|
|

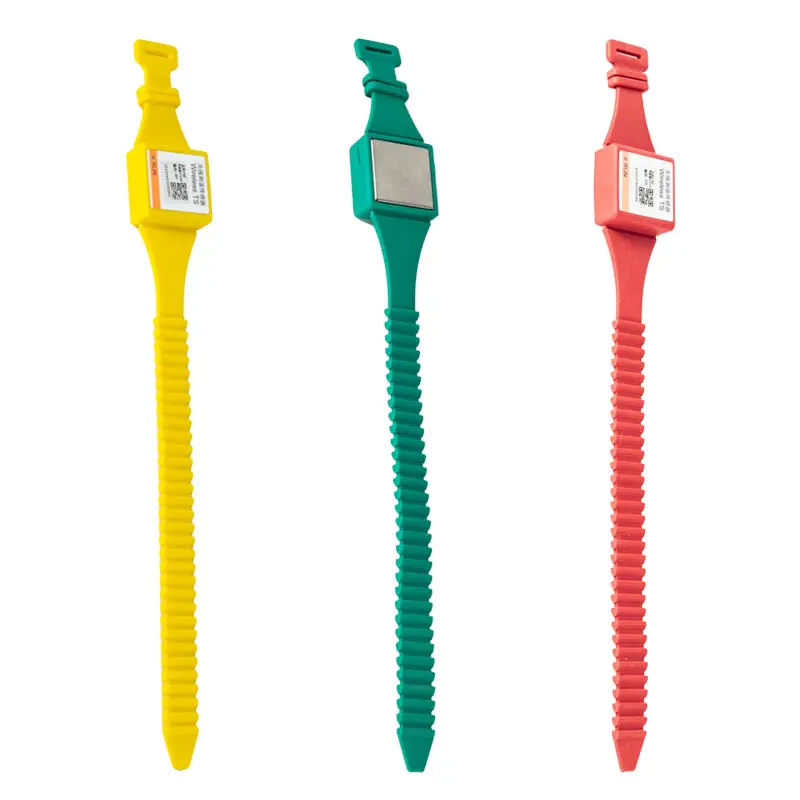

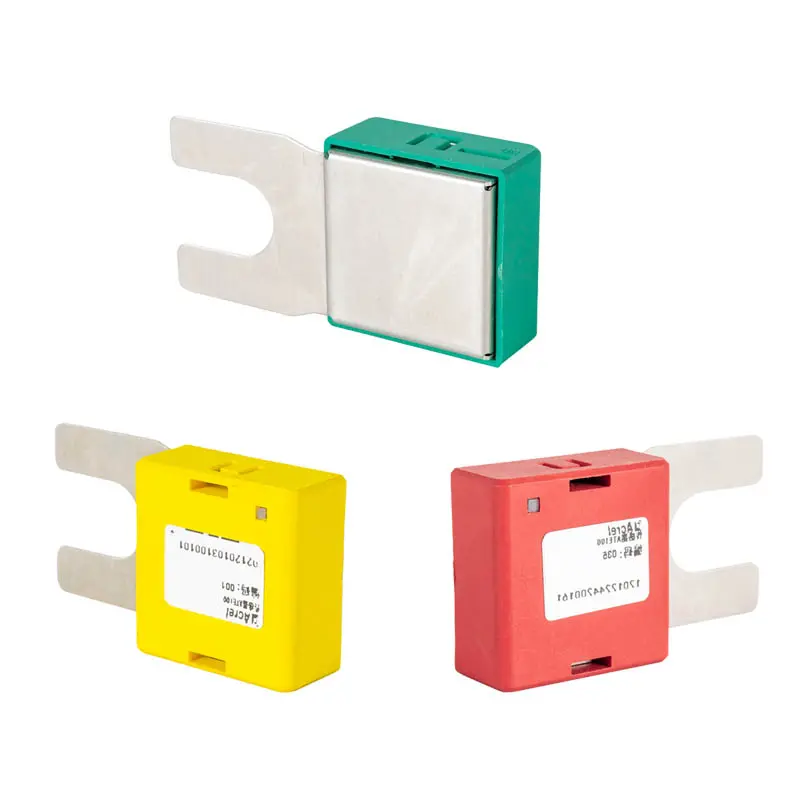

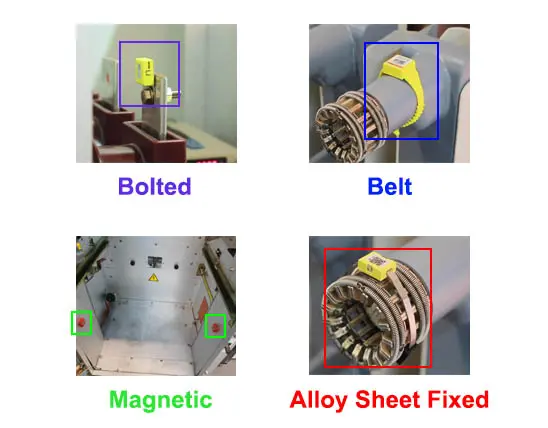

Various Installation Methods ● Bolted Installation ● Belt Installation ● Magnetic ● Fixed by alloy chips |
|
|

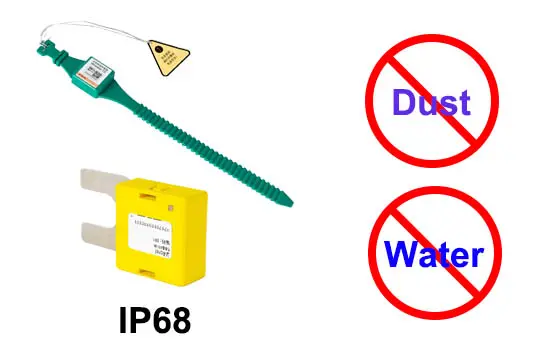

Optional IP68 Protection Level ● Suitable Model: ATE100P, ATE200P ● Standard: IEC 60529 |
|
|

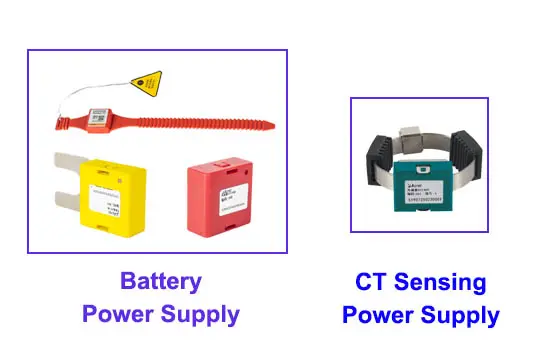

Battery or CT Sensing Power Supply ● Lifespan: ≥5 years (battery); ≥10 years (CT sensing) ● Battery Model: ATE100(P),ATE100M,ATE200(P), ● CT Sensing Model: ATE400 |
|

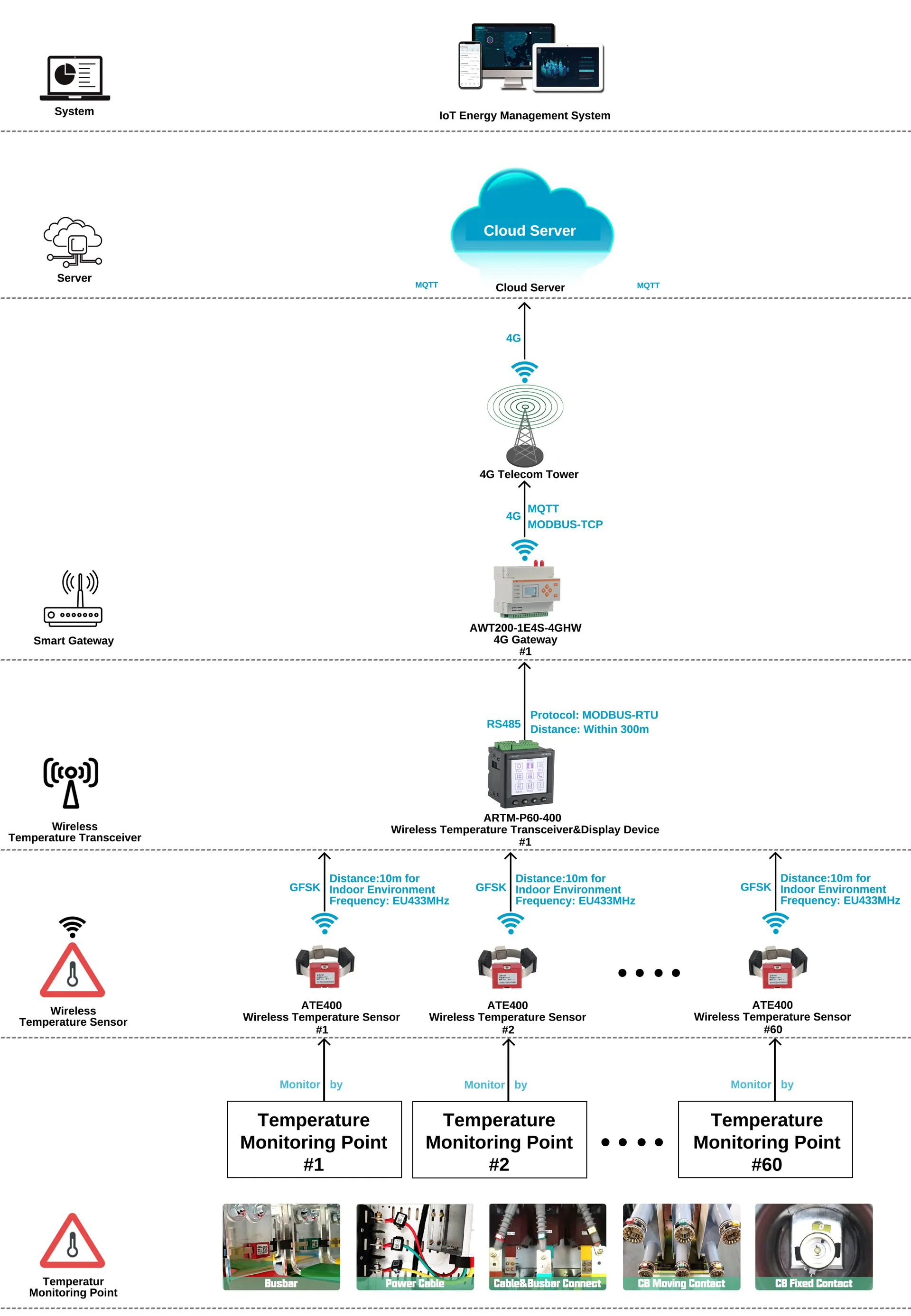

Structure

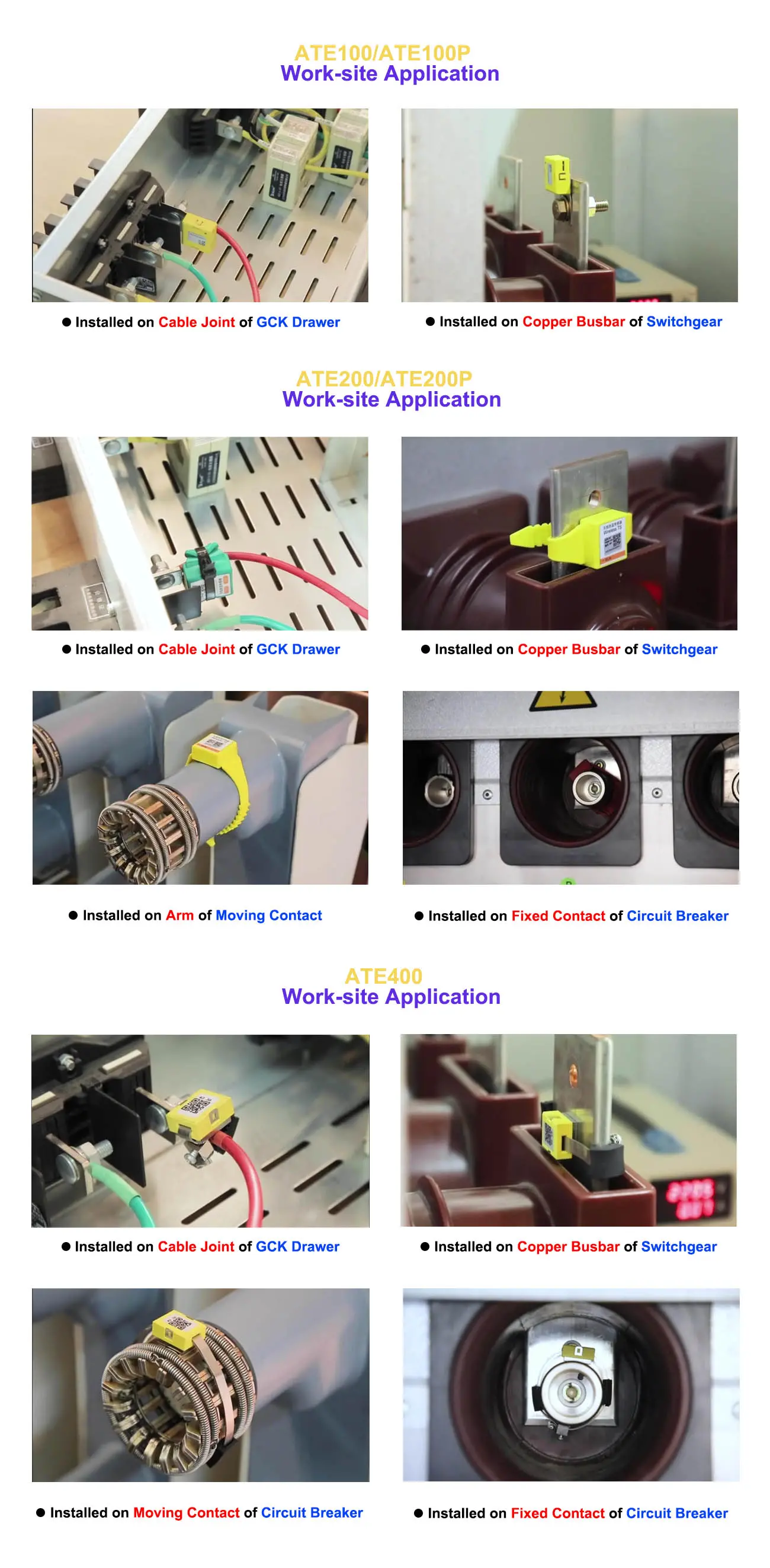

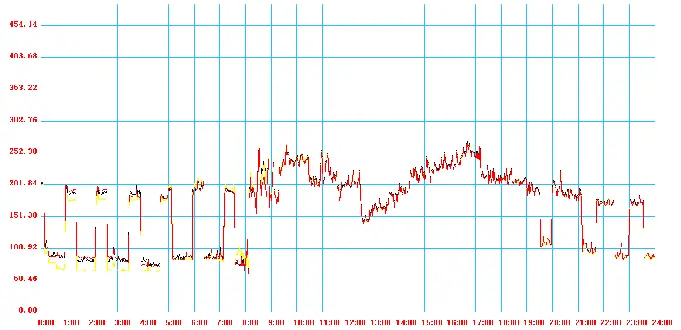

Application
Technical Datasheet
|
Name |
Parameter instruction |
Installation |
|
ATE100 |
62.4*32.4*16mm, φ13.5mm( length*width*high, aperture); -50℃~+125℃, Accuracy class ±1℃, battery powered, life ≥5 years; 470MHz, open distance 150m. |
Bolt fixing |
|
ATE100P |
62.4*32.4*16mm, φ13.5mm( length*width*high, aperture); -50℃~+125℃, Accuracy class ±0.5℃, battery powered, life ≥5 years; 470MHz, open distance 150m. IP68 |
Outdoor bolt fixing |
|
ATE100M |
32.4*32.4*16mm( length*width*high, aperture); -50℃~+125℃, Accuracy Class ±1℃, battery powered, life ≥5 years; 470MHz, open distance 150m. |
Magnetic absorption fixation |
|
ATE200 |
35*35*17mm, L=330mm ( length*width*high, belt); -50℃~+125℃, Accuracy Class ±1℃, battery powered, life ≥5 years; 470MHz, open distance 150m. |
Strap binding |
|
ATE200P |
35*35*17mm, L=330mm ( length*width*high, belt); -50℃~+125℃, Accuracy Class ±0.5℃, battery powered, life ≥5 years; 470MHz, open distance 150m. IP68 |
Outdoor strap binding |
|
ATE400 |
25.82*20.42*12.8mm( length*width*high); -50℃~+125℃, Accuracy class ±1℃, CT induction of electricity powered, starting current ≥5 A; 470MHz, open distance 150m. |
Alloy sheet fixed and Powered |
|
Wireless temperature measurement |
Item |
Value |
|
Wireless frequency |
470MHz |
|
|
Communication distance |
150m in open area |
|
|
Sampling frequency |
ATE100, ATE100M, ATE200, ATE100P, ATE200P:25s ATE400:15s |
|
|
Transmission frequency |
ATE100, ATE100M, ATE200, ATE100P, ATE200P:5min ATE400：15s |
|
|
Power source |
CT-powered, starting current>5A |
|
|
Installation |
Alloy chip fixing |
|
|
Range of temperature |
-50AC~125°C |
|
|
Precision |
ATE100, ATE100M, ATE200, ATE400: 士 TC ATE100P,ATE200P: 土0.5°C |
|
|
Application |
Joints in high or low voltage switchgears |
|
|
Service life |
^5 years |
|
|
Environmental requirement |
Operating temperature |
-50"C~125"C |
|
Relative humidity |
W95% |
|
|
Atmospheric pressure |
86kPa~106kPa |
